Gateway Patton SN4114 - 4FXO

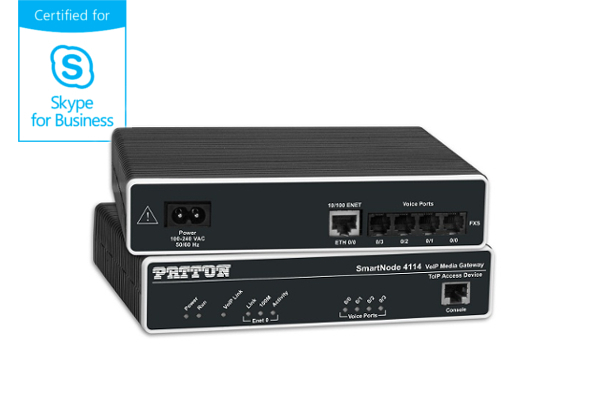

  • Imagen 1: Gateway Patton SN4114 - 4FXO
  • Imagen 1: Gateway Patton SN4114 - 4FXO

Avanzada 7 code: 0030260760004

Manufacturer SKU: SN4114/JO/EUI

Producto descatalogado

  • Patton SN4114 - 4FXO
    SN4114/JO/EUI

    VoIP Media Gateway

    Overview
    --Image: Made in USA -- The business-class SmartNode 4110 VoIP Media Gateway supports up to eight transparent phone calls and leverages VoIP for carrier and corporate access. Connecting to any analog phone, fax, or PBX, the SN4110 is an effective and flexible solution for toll-bypass, remote/branch office voice connectivity, and enhanced carrier services.

    The SN4110 series is the perfect choice for phone-to-IP connectivity. With its FXS analog ports the SN4110 connects to any legacy telephone or PBX and provides dial-tone, ringing, caller-ID and other services. When equipped with FXO ports, the local PSTN can be accessed enabling local calling and enhanced toll-bypass applications while using a single connected telephone. Flexible call integration allows per-port telephone numbers, programmable call progress tones, and distinctive ringing. With Telephony-over-IP (ToIP) call switching, calls can automatically be routed to the PSTN or the IP network while providing flexible numbering plans and end-to-end feature transparency. PPPoE, DHCP, and VLAN offers universal IP connectivity and optional IPSEC VPN with AES/3DES guarantees secure voice over the public network.

    Patton's SmartNode 4110 delivers the legacy phone interfaces, service transparency, and flexible PSTN integration for true converged packet voice.

    Applications
    Remote Office/Branch Office Voice Extension and Access
    In enterprise networks, transparent access to PBX features while using existing equipment is key to low-cost operations. Now, instead of installing a separate PBX at the remote office, the SmartNode 4110 is able to provide transparent extension while simultaneously connecting multiple locations. The extensions can be managed centrally and benefit from PBX services such as calling groups, least cost routing, and call forwarding. PSTN access allows local calls to be processed without using corporate remote PBX resources. Additionally, the corporate PBX can break-out and bypass any long distance charges by using the remote office for the local gateway.

    Model

    Features:

    • 4 FXO ports—Compact, reliable stand-alone VoIP gateway with different port options. Supports simultaneous voice or fax calls on all ports.
    • Advanced Local Call Switching—Virtual interfaces and routing tables provide industry leading flexibility in call handling programming. Local call switching, soft fallback to alternative routes. Simultaneously connects to multiple SIP services/IP PBXs.
    • Complete SIP and T.38 support—Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem handling, DTMF relay. Codecs G.729, G.723
    • Easy Management & Provisioning—Web-based management, SNMP, command line interface. Automated mass provisioning for efficient large-scale deployments.
    • Outstanding Interoperability—Proven integration for voice and T.38 fax with 3CX® and Asterisk™ and other leading IP PBX systems and soft switch vendors.
    • Supported by SmartNode™ Redirection Service: A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers.
    • VoIP protocolsSIPv2 (B2BUA capable, multi-instance, simultaneous support of multiple registrars and direct IP dialing) • SIP call transfer, redirect • DTMF in-band & out-of-band • All tones programmable (dial, ringing, busy) | H.323v4
    • FXO ports2FXO (wire Loopstart on RJ-11/12 • Programmable impedance, ring detection, tone detection, disconnect supervision • Caller ID detection)
    • FAX codec T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass
    • WAN portsOne 10/100 Ethernet port • DHCP Client • access control lists • Traffic policing • IEEE 802.1p, TOS, DiffServ labeling • IEEE 802.1Q, VLAN tag insertion/deletion (simultaneous support of multiple VLANs) • IPSEC, IKE, AES/DES/3DES Encryption (optional)
    • Audio CodecCODEC G.711 a-law/mu-law, G.723, G.729ab, • G.726, G.727. T.38 fax relay (9.6 k, 14.4 k) • G.711 transparent fax and bypass
