Avanzada 7 code: 0121061020001
Manufacturer SKU: M100
- Producto descatalogado

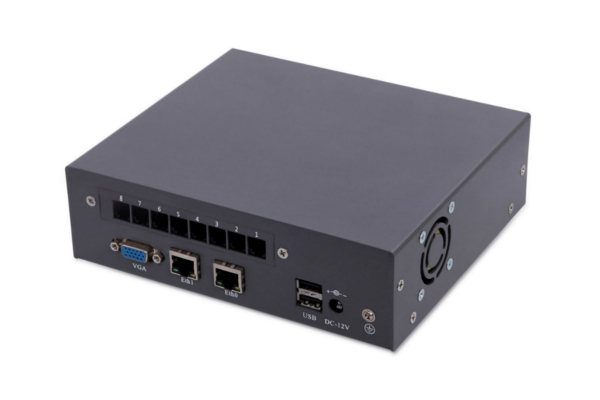

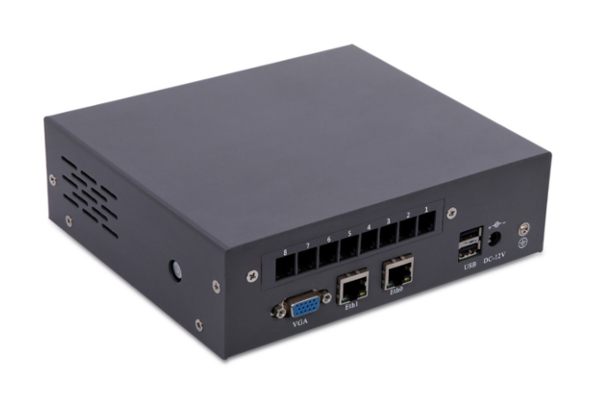

Openvox M100 appliance
-
Appliance Openvox MC100
The OpenVox MC100 appliance is the upgraded version of the Elastix miniUCS PBX, an Asterisk-based solution for SMBs. This appliance supports integrated processing protocols, including SIP protocols on the IP side and BRI, PRI, SS7 and some transcoding protocols on the client side. Taking full advantage of the open source platform, the MC100 PBX includes Elastix 2.5 distribution from the factory.
- Up to 300 extensions
- *240 Concurrent calls (max recommended)
- Storage: 16GB SSD
- 2 USB ports
- Combination of FXS/FXO, BRI interface, E1/T1
- PRI/SS7 to SIP Gateway
- PRI/SS7/FXS/FXO/BRI Signal Converter
- SIP and IAX2 support
*It represents an estimate in a basic scenario.
Compatible Cards
Tipo Marca Modelo Analog
Sangoma A200E, A200DE Digital Sangoma A101E, A101DE Sangoma B501E, B501DE, B502E, B502DE Digium TE133 Hybrid Sangoma B601DE Mobile Sangoma W400 (Modular, up to 4 GSM) -
- Type of linesVoIP, SIP, BRI, PRI, SS7 and some protocols transoding in CPE
- Maximum registered extensionsUp to 50 VoIP channels
- USB2
- RJ45 ports2 x 10/100/1000M
- Audio CodecG.711 (a/u), G.729a, G.723.1, G.722 and G.726
- Additional featuresH.323
- SIPYes
- Additional featuresAdvanced dialing rules, blacklist, call detail records (CDR), caller ID, call waiting, fax support, firewall, follow me, IVR menu system, music on hold, music on transfer, ring group queues, 3-way calling, voicemail
- SpecsSIP/IAX trunk & PSTN Connectivity
- Power supplyAlternative power: Input: 100-240V ZC, 50/60HZ | Output: 12V DC, 2.33a
- Simultaneous call32 concurrent calls (max recommended): Represents an estimate in a basic scenario
-
- DatasheetMC100 Series Datasheet_en-1.pdf
