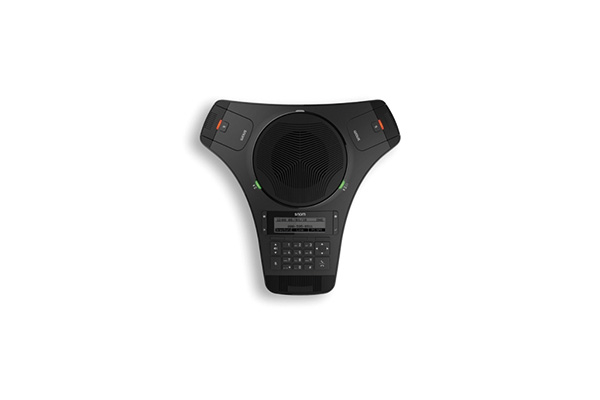

Snom Conference C520

The Snom Conference C520 is an audio-conference solution aimed at professionals and companies of any size, ideal for company meetings. It comes equipped with 3 microphones (one of them integrated in the phone). In addition, it incorporates two DECT microphones that can be easily dismantled and placed remotely to cover the sound of other conference participants that are farthest from the terminal.

Each of thse microphones of the C520 use dynamic reduction and adaptative feedback control to provide crystal clear HD audio transmission, even in crowded or spacious rooms.

On the other hand, in order to cover optimal coverage, microphones are acapable of synchronizing in real time based on their current position. Thanks to this technology, C520 allos the user freedom of movement without even having to raise their voice-regadless of meeting room size.

Nowdays, connectivity is the most important factor in efficient collaboration and therefore, the C520 is equipped with a versatile interface and Bluetooth to allow connection with mobile phones and headphones.

In order to adapt to any environment, the Snom C520 can also expand in coverage by pairing with up to three C52 wireless microphones and can greatly inrease the range of performance.

Key features
- 3 SIP
- Graphical backlit display (158x57px)
- 3 context-sensitive keys
- 4-way navigation key, Ok key and cancel key
- LED status lights
- Full-duplex hands-free talking
- 2 detachable wireless microphones with charging cradles built into the telephone
- 1 integrated hands-free microphone
- Bluetooth connectivity
- Wideband audio
- Flexible to use
- Allows for up to three C52-SP hands-free units to be connected
- Codecs: G.711 A-law, µ-law, G.722 (wideband), G.726, G.729, Echo suprression, CNG (Comfort Noice Generator) and automatic gain control (AGC)
- It can ran continuously for up to 12h without recharging or up to 70h in standby mode.
- Included in delivery:
  - Conference-call device
  - 2 wireless DECT microphones with batteries
  - Power adapter
  - 2 Ethernet cables
  - Quick Installation guide
- DECT2 detachable DECT wireless microphones with a range up to 50 metres
- Keypad3 context-sensitive keys | 4-way navigation key, "OK" key and "Cancel" key | Volume key
- BluetoothYes; Bluetooth connectivity for two devices, such as a mobile phone or a headset | Bluetooth protocol: HFP, HSP, A2DP, AVRCP
- Posibilidad de ampliación con micrófonos extra2 detachable DECT wireless microphones (included) | It can be expanded with up to three C52-SP
- Supported codecsG.711 A-law, µ-law; G.722 (wideband); G.726; G.729
- PoEPoE Class 3 (Included)
- Noise cancellerYes
- SIP accounts3
- RangeWireless microphones with a range of up to 50m
- Talk timeUp to 12h without recharging
- Stand-by timeUp to 70h
- Additional featuresInteroperable with all major IP PBX platforms
- Additional featuresProtocols: SIP (RFC3261), DHCP, (S)NTP, HTTP / HTTPS / TFTP, STUN, LDAP (server-based directory), XSI (server-based directory)
- DisplayGraphical backlit display 158x57px
- DatasheetSnom C520_datasheet_EN_Avanzada 7.pdf
- Datasheetsnom_c520-wimi_datasheet_es.pdf
