Adapter & Sangoma wires T1/E1 tapping
-
Introduction
As requirements for security, customer service and legal responsibilities have increased, it has become important to be able to monitor and record telephone conversations.
Sangoma's T1/E1 tapping solution is a high performance, robust and inexpensive toolkit that gives you complete access to the T1/E1 voice and signaling interfaces. Based on the popular A102, A104 and A108 AFT cards, the system supports the tapping of one, two and four T1/E1 lines per card respectively.

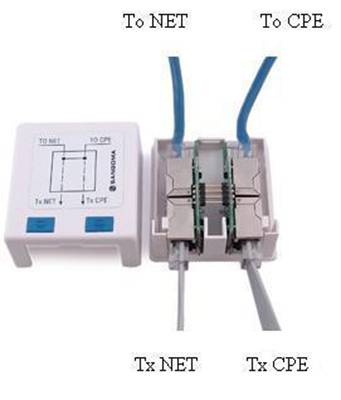

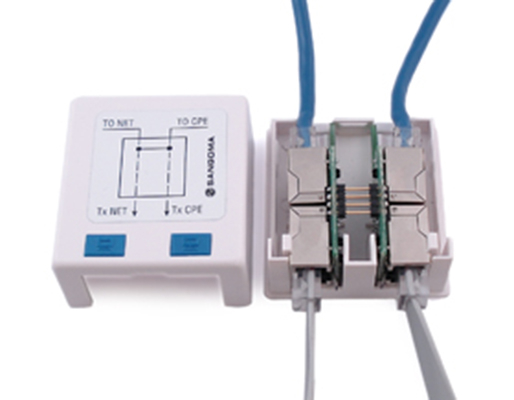

A convenient Tap Connection Adapter is available, which allows the data transport line to be hard wired with strain relief. The tapping connections are then simply connected to the RJ45 connectors provided.
Architecture:
The Sangoma Line Tapping Solution is comprised physically of an A102 (dual port) A104 (quad port) or A108 (octal port) T1/E1 card, standard cabling, and a PN 633 Tap Connection Adapter. The lines to be tapped are hard wired into the Tap Connection Adapter. Straight cables are connected between the Tap Connection Adapter and a pair of ports on the T1/E1 card, allowing both sides of the line to be monitored simultaneously.
The system can be used in both standard impedance and high impedance modes, high impedance being used to ensure that no accidental short of the monitoring lines will affect the flow of T1/E1 traffic.
A line can be tapped 5 times using a filtered tap without negative affects.
-
-
- User manualtap-tutorial.pdf
- Datasheettap-datasheet.pdf
