Vega 50 gateway 8FXS+2FXO

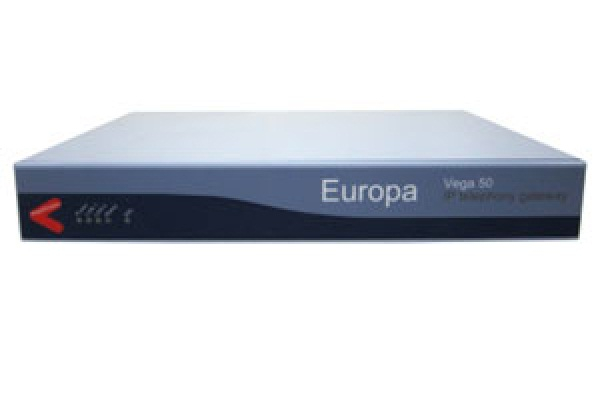

  • Imagen 1: Vega 50 gateway 8FXS+2FXO
  • Imagen 1: Vega 50 gateway 8FXS+2FXO

Avanzada 7 code: 0030260050005

Manufacturer SKU: VS0113

Producto descatalogado

  • 8FXS Vega50 +2 FXO VoIP Gateway for 8 analog devices (8FXS) and 2 PSTN lines (2FXO).

    Features & Benefits

    Total Flexibility of BRI and Analogue Configuration
    Each BRI Interface is independently configurable as either Network (NT) or Terminal Side (TE) and allows the Vega 50 to be connected to both a PBX and the ISDN simultaneously. This eliminates disruption to the configuration of existing equipment and increases the flexibility and choices available for call routing.

    The Vega 50 is configurable for different country requirements including tones and line impedance, 600R, 900R or CTR-21 making it easy to deploy for a wide variety of applications.

    This ensures that Vega connected networks, within multinational site locations can be supported with confidence.

    Open, Non-Proprietary, Configurable Interfaces
    The Basic Rate Interface (BRI) Vega 50 VoIP Gateways support ETSI BRI while the analogue variants support standard Loop Start signalling resulting in significant levels of interoperability with a wide range of exisiting telecommunication systems.

    Vega VoIP Gateways also support SIP, H.323 and T.38 Fax and this extends that interoperability to a broad mix of VoIP equipment.

    Lifeline PSTN Backup
    The Vega 50 VoIP Gateway, when equipped with FXS ports are also fitted with two FXO ports. When powered, the Vega 50 will route calls to or from these two FXO ports. Under power failure conditions, the two FXO ports provide a hard-wired bypass feature to the two FXS ports. This allows PSTN calls still to be made, giving resilience and confidence of business continuity, even under power failure conditions.


    • VoIP protocolsSIP y H323 v4
    • FXO ports2 RTB
    • FXS ports8 FXS
    • FAX codec T.38
    • LAN portsRJ45 (10 BaseT/100 BaseTX, full/half duplex)
    • WAN portsRJ45 (10 BaseT/100 BaseTX, full/half duplex)
    • Audio CodecG.711 (a-law/µ-law) (64 kbps) + G.729a (8kbps) + G.723.1 (5.3/6.4 kbps)
