Est.Base DECT SIP Kirk 1G8 (11SC) PoE

Compare

Avanzada 7 code: 9010030770018

Manufacturer SKU: 02337300

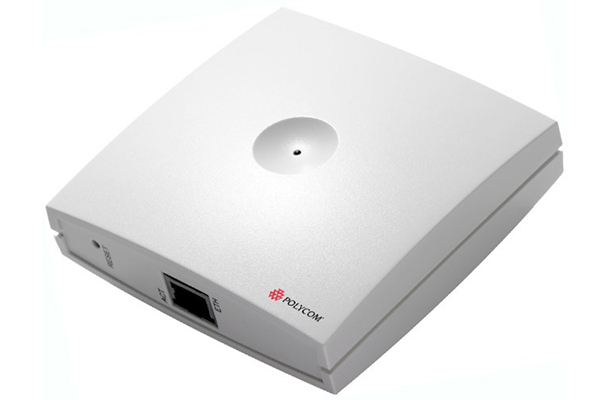

The KIRK IP Base Station controls the traffic channels in the air and works as the link between the KIRK Handset and the KIRK Wireless Server 6000.

The KIRK Wireless Server 6000 operates the KIRK IP Base Stations through standard Ethernet PoE LAN cables (CAT5 or better)

Each KIRK IP Base Station covers a circular area of between 50 and 600 metres. The size of the coverage area depends on location specifics such as building materials. Before installation, each location needs to be assessed to define the number of base stations required to achieve desired coverage.

The KIRK IP Base station comes in a wall mounted version and is used with the KIRK Wireless Server 6000.

Features and Benefits
- 12 simultaneous traffic channels (32 Kbit/s)
- Antenna diversity
- Frame synchronising via the KIRK Wireless Server 6000
- Fast and easy installation — standard Ethernet with PoE to the KIRK Wireless Server 6000
- No external power required — powered from the PoE enabled LAN network
- LAN ports• 10/100Mbps Ethernet port • Manual or dynamic host configuration protocol (DHCP) network setup • Time and date synchronization from KIRK Wireless Server 6000 • Event logging • LED status indication
- Power over Ethernet (PoE)Power over Ethernet (IEEE 802.3af)
- Datasheetkirk_ip_basestation_na.pdf
- Datasheetkirk_wireless_application_reference_guide.pdf
