Avanzada 7 code: 0010030140009
Manufacturer SKU: 69207
- Producto descatalogado
aastra DECT RFP 32 IP
-
aastra RFP 32 IP

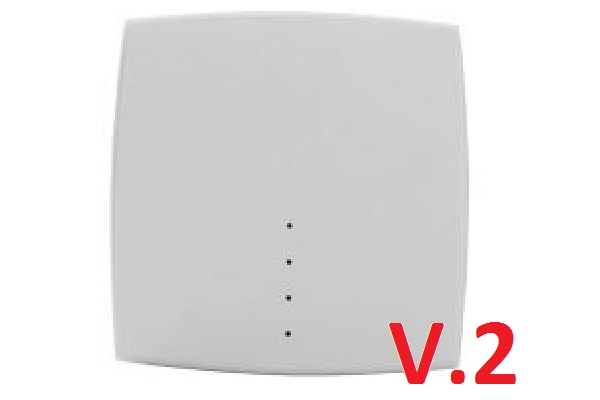

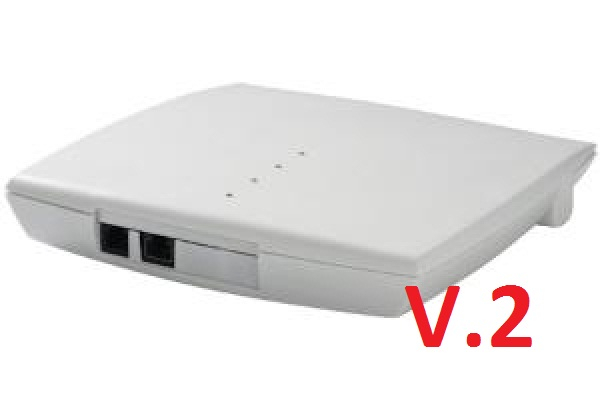

The indoor base station RFP 32 IP enables the complete integration of DECT radio networks into the IP infrastructure and provides 8 simultaneous call connections. It is powered either via a separate power supply unit or via Power-over-Ethernet.
The outdoor base station RFP 34 IP performs the outdoor operating requirements (class of protection IP 65). If required, radio relay antennas can also be used instead of the dipole antennas. The RFP 34 IP is powered using Power-over-Ethernet.

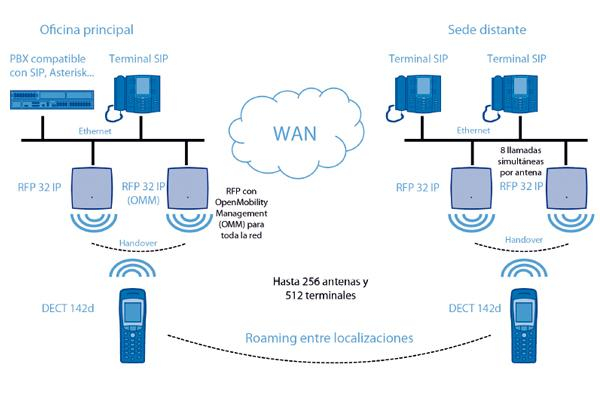

The Radio Fixed Parts RFP (L)32 IP and RFP (L)34 IP are connected directly to the LAN like a VoIP device and use the benefits of established DECT technology for radio transmission. This ensures full compatibility with cordless DECT terminals, which are available as system telephones and standard GAP terminals.
DECT
* 120 DECT channels supported for maximum use of DECT capacity
* 8 simultaneous voice channels per RFP, 4 additional channels for handover
* GAP standard supported
* Connection handover in line with the GAP standard
* DSAA authentication between base and handset
* Support of DECT encryption
* Adicional antenna for RFP 32/34 IP.For more detailed information visit the product page.
-
- VoIP protocolsSIP VoIP connection using RTP/RTCP protocol.
- LAN portsEthernet 100 BaseT + PoE (Power over Ethernet standard IEEE 802.3af, class 0)
- Audio CodecG.711 / G.723.1 / G.729AB1 codec depending on required voice quality and available bandwidth
- Datos TécnicosCentral cluster administration with 8 simultaneous voice channels per RFP, 4 additional channels for handover
- EquipmentExternal dipole or directional antenna on the RFP IP
-
- Datasheetrfp(L)-32ip-34ip_ds_en_2011-09.pdf
- Datasheetrfp32_34_ds_gb_0807_2.pdf
- User manualSIP-DECT_OM_System_Manual_R21A_V1-8_en.pdf
- User manualSIP-DECT_OM_Provisioning_R21A_2011-02_en.pdf
- User manualSIP-DECT_OM_Locating_R21A_2011-02_en.pdf
- User manualSIP-DECT_OM_IMA_R21A_2011-03_en.pdf
- FirmwareSIP-DECT_2_1_SP4.zip
- Quick start guideSIP-DECT_OM_Compendium_R21A_2011-03_en.pdf
- FAQModelos de licenciamiento.pdf
