Khomp UMG FXS 240

  • Gateway Khomp UMG FXS 240 with 24 FXS and 2 ports of Gigabit network 10/100/1000 Mbps already available in Avanzada 7
  • Gateway Khomp UMG FXS 240 with echo cancellation and customizable CDR now available in Avanzada 7
  • Gateway Khomp UMG FXS 240 with 24 FXS with possibility of internal and external power supply already available
  • Gateway Khomp UMG FXS 240 with 24 FXS and 2 ports of Gigabit network 10/100/1000 Mbps already available in Avanzada 7
  • Gateway Khomp UMG FXS 240 with echo cancellation and customizable CDR now available in Avanzada 7
  • Gateway Khomp UMG FXS 240 with 24 FXS with possibility of internal and external power supply already available

Manufacturer: KHOMP

Avanzada 7 code: 0030261090001

Manufacturer SKU: UMG FXS 240

Unidades en la cesta: 0

Add to cart

  • Gateway Khomp UMG 240 FXS

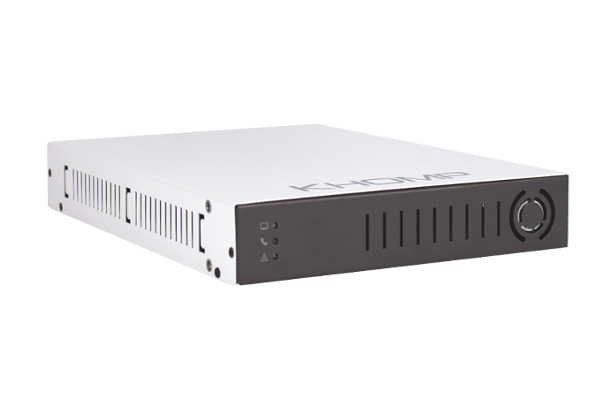

    The UMG FXS 240 is a mid-line gateway of the Khomp brand. The device is ready to connect to VoIP links, software switches and PBX equipment and can have up to 24 FXS channels and up to 10 registered SIP accounts.

    Furthermore, it is compatible with the main signals and codeecs of the market, in addition to the control and routing of calls, according to programmed rules.

    It has two internal plates:

    • CPU board: responsible for routing, access to web interface and equipment halt resources

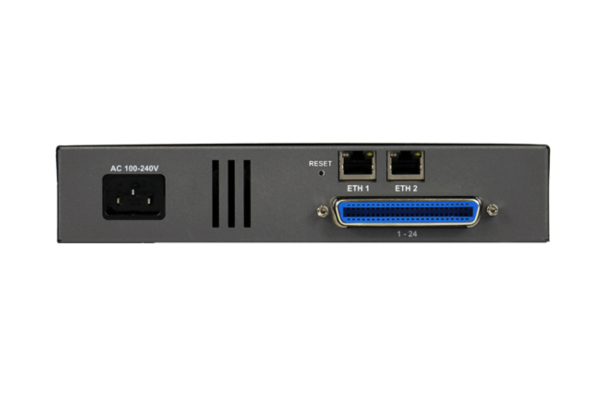

    • Network board: has two external 10/100/1000Mbps gigabit network ports. Dedicated to the administration, the maintenance of the device and the connection with other equipment.

    Key features

    • 24 FXS channels
    • Up to 10 registeres SIP accounts
    • 2 Ethernet network ports
    • Echo cancellation
    • Failover of routes
    • Compatibility with SNMP
    • Customizable CDR
    • Simple design and ease of installation
    • OLED graphic screen (optional)
    • Internal AC power supply (standard): input: 100-240V 50-60Hz, maximum power consumption: 30W | External power supply (optional)
    • Codecs: G.711A, G.711U, G.729A
    • 2 Gigabit network ports 10/100/1000 Base-T
    • 12 VCC polarized power supply connector (optional source)


    • FXO ports0
    • FXS ports24
    • PRI ports0
    • GSM ports0
    • Ethernet PortsGigabit: 2x 10/100/1000 Base-T
    • Supported codecsG.711A, G.711UU, G.729A
    • Power supplyInput: 100-240 V 50/60 Hz | Output: 12V / 3.5A | External power supply available (optional)
    • Additional featuresProtocols: SIP, SNMP, DNS, ICMP, IP, RTP, TCP, UDP, FTP, HTTP, HTTPS
    • FAX codecCompatibility with FAX T.38 and pass-through
