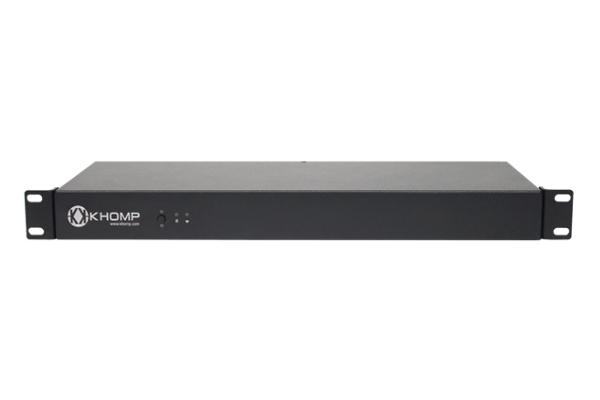

The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 1 internal E1 link and RJ connector.
It also presents the possibility of adding 2 external telephony modules. These modules can include E1/T1, GSM, FXO, and / or FXS, as long as the maximum of 60 STFC telephony channels are respected and two of their network ports are used. (See more details on product technical sheet).
In addition, this series KMG 200MS offers the ideal solution for companies and institutions with communication needs through IP telephone exchanges since SIP connection sections can be made through this series.
Características destacadas
1 E1/T1 internal
Integrated SBC
RJ connector. Also available with BNC connector
Up to 60 TDM channels
Up to 240 SIP VoIP sections
Link R2 and ISDN
Compatibility with call cassification
Standard 1U sizing for 19''rack
Advanced routing and security resources SBC
Classification of calls and intelligent supervision of channels in real time
Network protocols: ISDN and R2 (with up to 60 MFC signaling substituents). Possibility of different configuration in each link.
PABX protocol: EL7, Line Side, LC y QSIG (SSCT and CT)
IP - 30 SIP channels for E1/T1 (G.711)
Codecs: G.711 A-law and μ-law, native in the system, for all interfaces; G.729a annex B, GSM, DVI, T-38.; only with transcoding, T.38
Power supply: input 110 ~ 240V CA – 50/60Hz; maximum power consumption: 150W
3 gigabit network ports (100/1000Mbps)
FXO ports0 (expandable with modules)
FXS ports0 (expandable with modules)
PRI ports1E1/T1
GSM ports0 (expandable with modules)
Additional featuresIntegrated SBC
Additional featuresCapacity for 2 SIM cards per channel, one active and one in stand-by mode
Gigabit3 Gigabit network ports 100/1000 Base-T
Power supplyInput: 100-240 V 56/60 Hz | Output: 12V / 2.5A
SpecsRJ connector | Available another version with BNC connector
Supported codecsG.711 A-law and u-law,G.729a annex B, GSM, DVI, T-38; only with transcoding
