Khomp KMG 200 MS - 2E1 (BNC)

Manufacturer: KHOMP

Avanzada 7 code: 0030281090010

Manufacturer SKU: KMG 200 MS - 2E1 (BNC)

Unidades en la cesta: 0

Add to cart
  • Gateway Khomp 200 MS - 2 E1 (Conector BNC)

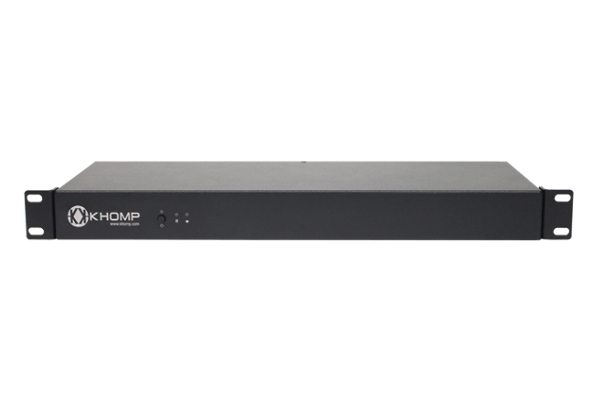

    The UMG 200 MS is a gateway Khomp with SBC integrated and configurable thanks to its modular interfaces. This particular model contains 2 internal E1 links and BNC connector.

    It also presents the possibility of adding 2 external telephony modules. These modules can include E1/T1, GSM, FXO, and / or FXS, as long as the maximum of 60 STFC telephony channels are respected and two of their network ports are used. (See more details on product technical sheet).

    In addition, this series KMG 200MS offers the ideal solution for companies and institutions with communication needs through IP telephone exchanges since SIP connection sections can be made through this series.

    Características destacadas

    • 2 E1/T1 internal
    • Integrated SBC
    • BNC connector. Also available with RJ45 connector
    • Up to 60 TDM channels
    • Up to 240 SIP VoIP sections
    • Link R2 and ISDN
    • Compatibility with call cassification
    • Standard 1U sizing for 19''rack
    • Advanced routing and security resources SBC
    • Classification of calls and intelligent supervision of channels in real time
    • Network protocols: ISDN and R2 (with up to 60 MFC signaling substituents). Possibility of different configuration in each link.
    • PABX protocol: EL7, Line Side, LC y QSIG (SSCT and CT)
    • IP - 30 SIP channels for E1/T1 (G.711)
    • Codecs: G.711 A-law and μ-law, native in the system, for all interfaces; G.729a annex B, GSM, DVI, T-38.; only with transcoding, T.38
    • Power supply: input 110 ~ 240V CA – 50/60Hz; maximum power consumption: 150W
    • 3 gigabit network ports (100/1000Mbps)



    Application model

    Modelo de aplicación Khomp KMG 200MS

    • FXO portsOptional (expandable with modules)
    • FXS portsOptional (expandable with modules)
    • PRI ports2E1/T1
    • GSM portsOptional (expandable with modules)
    • Ethernet Ports3 gigabit network ports
    • Supported codecsG.711 A-law and u-law,G.729a annex B, GSM, DVI, T-38; only with transcoding
    • Additional featuresIntegrated SBC
    • Additional featuresCapacity for 2 SIM cards per channel, one active and one in stand-by mode
    • Gigabit3 Gigabit network ports 100/1000 Base-T
    • Power supplyInput: 100-240 V 56/60 Hz | Output: 12V / 2.5A
    • SpecsBNC connector | Available another version with RJ connector
