Patton eSBC SN5501 4 SIP Calls non RTP

Manufacturer: PATTON

Avanzada 7 code: 0030330760006

Manufacturer SKU: SN5501/4B/EUI

Unidades en la cesta: 0

Add to cart
  • Patton SmartNode SBC SN5501 4B / EUI

    The SN5500 series acts as a Session Border Controller, access router and QoS CPE, all in one device. You can also carry out the evaluation and monitoring of the network in the client's facilities using the PacketSmart agent to prevent, reduce and solve network and voice quality problems.

    Key features

    • 4 SIP calls non RTP transcoding (SIP b2b UA) upgradeable (máx. 200)
    • Up to 200 calls from SIP to SIP in ideal conditions
    • 2 x Gigabit Ethernet 10/100/1000Base-T
    • External UI power (100-240)
    • IP routing
    • Advanced switching of local calls. It connects to multiple SIP / IP PBX services. It includes SIP TLS / SRTP
    • Network monitoring and evaluation
    • Automatic provisioning
    • Propietary operating system: uses Trinity's patented software optimizing security
    • Easy administration and provisioning
    • Full VoIP protocol support - SIPv2, SIPv2 soberTLS, T.38, voz HD G.722, RTP security with SRTP, face and modem omission, DMTF relay
    • Interoperability for voice and fax T.38

    Why SmartNode?

    • Patton Quality
    • Made in the USA
    • Unrivalled Customer Support
    • Free Support and Upgrades

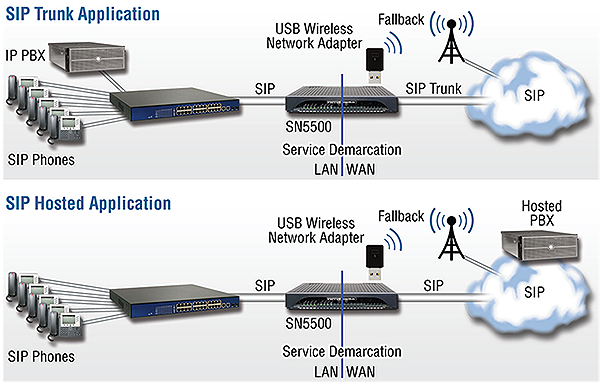

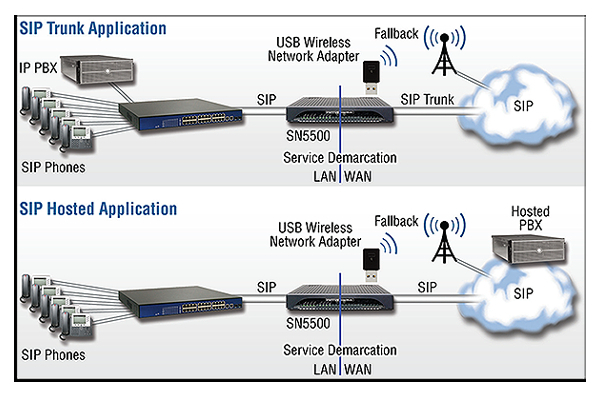

    Valid for this two applications:

    Escenarios Patton SN5501

    • Additional featuresInteroperability for voice and fax T.38
    • USB1 USB port
    • Additional featuresIEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion / deletion), TOS, DiffServ Labeling
    • Audio CodecG.722, G.711 m/A-law, G.723.1 (6.4 kbps), G.729, 729.a, 729ab (8 kbps), G.726 (16, 24, 32, 40 kbps), G.168-2004 echo cancelación (128ms - Depend on the model)
    • RJ45 ports2 x RJ45 10/100/1000 Base-T Ethernet ports
    • Additional features1 RS-232 Console port
    • VoIP protocolsUp to 8 transcoded or non-transcoded calls (SIP b2b UA) | 2 x 10/100 / 1000Base-T Ethernet Port
