Epygi Quadro dual E1/T1 30-RM

Compare

Avanzada 7 code: 0030280070003

Manufacturer SKU: SKU-QM-0003

The QuadroM Dual E1/T1 doubles again the call capacity of the QuadroM E1/T1, affording as many as 60 simultaneous calls (48 simultaneous calls for T1--US and Japan) from the two broadband trunks. The QuadroM Dual E1/T1 30 features 30 channels of g.729 compression codec, QuadroM Dual E1/T1 60 allows for 60 channels. Sound quality and application integration match the quality of the QuadroM E1/T1 with single port.

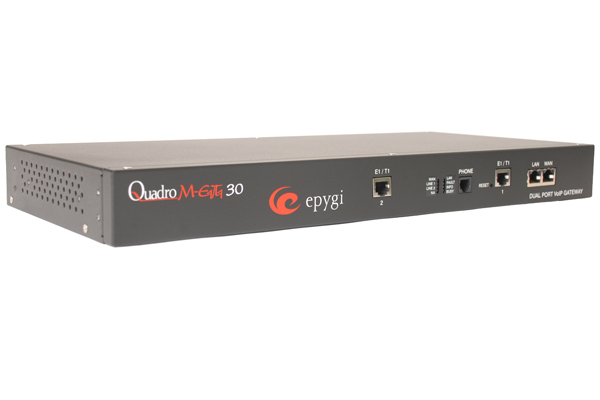

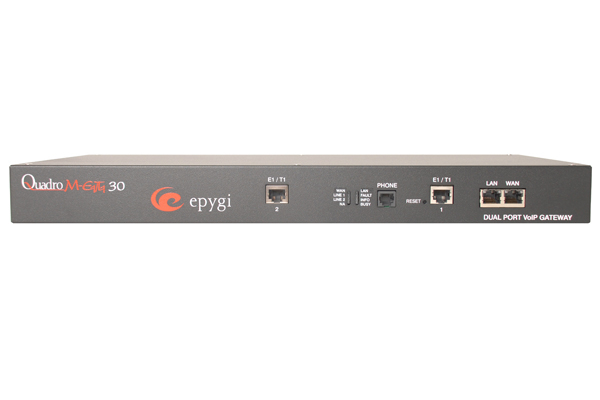

The QuadroM Dual E1/T1 is also available in the durable rack-mountable housing including built-in power source and cooling fan for heavy duty operation and extended life.

The QuadroM version includes call routing and auto attendant capabilities, voice prioritization over data and sophisticated firewall and security elements. The QuadroM functions primarily to bridge traditional PBX traffic to the Internet, reducing costs and simplifying system administration.
- PRI ports1 (E1/T1 : CAS,CCS)
- FXS ports1
- VoIP protocolsSIP, H.323
- Audio CodecG.711, G.726, G.729, iLBC
- LAN ports1 (100 Mbps)
- WAN ports1 (10 Mbps / Ethernet-PPPoE )
- FAX codecAudio / T.38
- Additional featuresDHCP Server, SNMP, Firewall, VPN, ...
- DatasheetDataSheetQuadroDUAL-ME1T1-Let-25-02-HiRes.pdf
- Guia de AdministracionQME1T1-ManII-AG-5_2_1-Ed1-WEB.pdf
- FirmwareSW-ME1T1GW-0502-0100.bin
- Release NotesRN-QuadroM-E1T1-5_2_1-E2.pdf
- User manualQME1T1-ManI-IG-5_2_1-Ed1-WEB.pdf
