Manufacturer: CYBERDATA
Avanzada 7 code: 0060660200010
Manufacturer SKU: 011269
Unidades en la cesta: 0
CyberData 011269: Intermediate Relay Module for Electronic Door Strikes
-

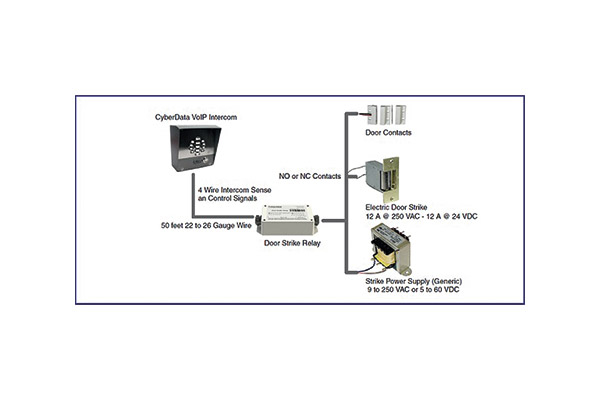

The CyberData 011269 Door Strike Intermediate Relay Module provides a reliable and efficient way to connect CyberData VoIP intercoms with electronic door strikes. It eliminates the need for a separate relay, reducing installation complexity and increasing safety.
Key features include:
- 12A relay with NO/NC contacts.
- Opto-isolated sense input.
- Power input range: 5V–60V DC / 9V–250V AC.
- Lock status LED indicator.
- Wall-mountable with cable strain relief.
- 4-wire interface for sense and control.
- Maximum cable length from intercom: 50 feet (15 meters).
Capable of handling up to 12A at 250VAC or 24VDC, this module operates in temperatures from -10°C to 50°C and is ideal for secure door access control systems using CyberData endpoints.
Download the full datasheet or contact our Sales Team for pricing and availability at sales@avanzada7.com
-
- Relay number1 high-capacity relay (12A)
- ConnectorScrew terminals for 4-wire intercom and NO/NC contact connection
- VoltageSupports multiple input and relay voltages: up to 250V AC or 24V DC
- SpecsMax intercom distance: 50 feet; operating temperature: -10 ºC to 50 ºC
- Additional featuresOpto-isolated sense input, lock status LED, wall mount, cable strain relief
-
- Datasheet011269_Door_Strike_Relay_Module.pdf
