Avanzada 7 code: 0020140010003
Manufacturer SKU: 1TE210PF
- Producto descatalogado

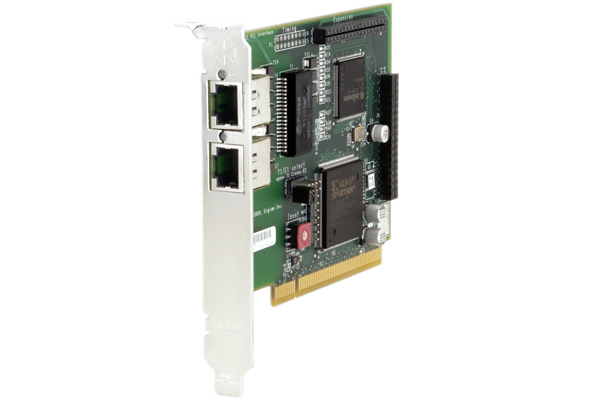

Digium TE210P
-
The TE210P is the next generation of Digium hardware that improves performance and scalability through bus mastering architecture. The TE210P supports E1, T1, and J1 environments and is selectable on a per-card or per-port basis. This feature enables signaling translation between E1, T1, J1 equipment and allows inexpensive T1/J1 channel banks to connect with E1 circuits. Because the TE210P improves I/O speed by up to 10 times, the result is reduced CPU usage and increased card density per server.
The TE210P supports a 3.3v PCI slot only - typically available on newer motherboards and in 64-bit PCI bus architectures. The TE205P is for use only with a 5.0 volt PCI slot.
-
- FXO ports0
- FXS ports0
- PRI ports2
- Puertos BRI0
- software Echo cancelationno
- Hardware Echo cancelationOpcional
- Slot typePCI
- Voltage3.3V
-
- Quick start guideADL_quickstart.pdf
- Datasheetdigital-cards-datasheet.pdf
- User manualte200series-user-manual.pdf
