Digium TE420

Compare

Avanzada 7 code: 0020140010008

Manufacturer SKU: 1TE420F

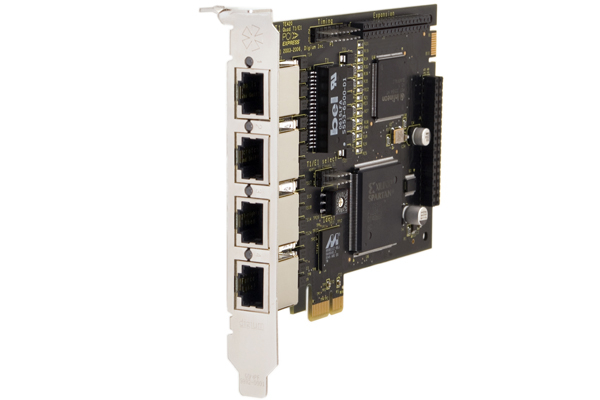

Digium's TE420 PCI Express card provides termination of up to 120 channels of voice or data across four E1, T1, or J1 interfaces in a PCIe x1 form factor. Selectable on a per-port or per-card basis, the TE420 allows E1 and T1 circuits to be mixed with full channel synchronization. Supporting PCIe x1, the TE420 may be used in any available PCIe 1.0 compliant slot - x1, x4, x8, and x16 without considerations for voltage selection or lane size.

The TE420 may be combined with Digium's VPMOCT128 Octasic DSP-based echo cancellation module (not shown in picture). The VPMOCT128 provides the G.168 algorithm which has been labeled a benchmark for echo cancellation and performs 128ms (1024 taps) of echo cancellation across all 128 channels in E1 mode or all 96 channels in T1/J1 modes. Bundled with the VPMOCT128, the product SKU is TE420B.

Digium has designed the TE420 to be fully compatible and integrated with Asterisk Business Edition, AsteriskNOW, and open source Asterisk.

The TE420 supports industry standard telephony protocols including North American and European Primary Rate signalling as well as standard Robbed Bit, Channel Associated Signalling in addition to standard PPP, HDLC, and Frame Relay data modes.
- FXO ports0
- FXS ports0
- PRI ports4
- Puertos BRI0
- software Echo cancelationno
- Hardware Echo cancelationOpcional
- Slot typePCI-Express
- Quick start guideADL_quickstart.pdf
- DatasheetPCI-express-digital-cards-datasheet.pdf
- User manualte400series-user-manual.pdf
