A104 Dual Voice and Data Board
Four-Port T1/E1/J1

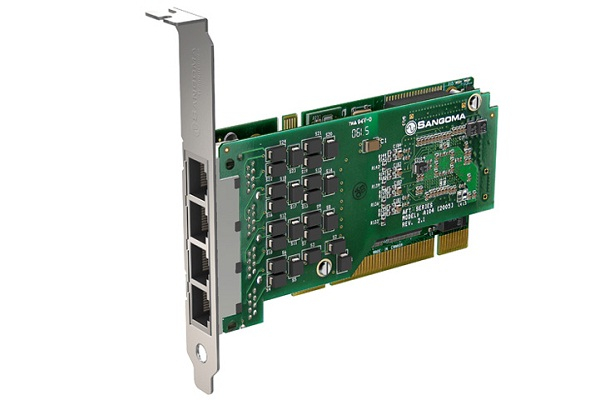

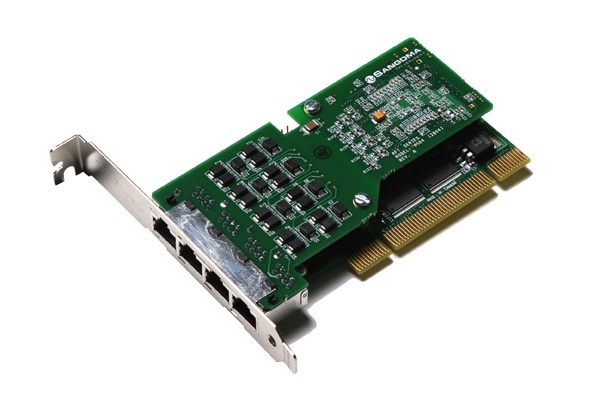

The Sangoma A104 Card: Four ports of optimized voice and data over T1, E1, and J1 available with Telco-grade hardware echo cancellation.

Part of Sangoma's award-winning Advanced Flexible Telecommunications product line, the A104 uses the same high-performance PCI or PCI Express interface that is providing superior performance in critical systems all over the world.

The A104 supports up to 120 voice calls and full-duplex data throughput over 4 T1, E1, or J1 lines.

Technical Specifications
- Four T1/E1 ports with a single PCI or PCI-Express interface optimized for high performance voice and data applications
- Mix T1 channel banks and E1 networks with full channel synchronization. TDM clocking mode lets network timing to be passed from a network-connected DS0 to any or all of the other ports, so both T1 and E1 are supported simultaneously
- Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
- All of Sangoma's AFT products use the same base PCI interface card. Fully compatible with all commercially available motherboards—proper PCI-standard interrupt sharing without manual tuning
- Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis. Includes high-quality, tested RJ45 cables and short 2U mounting clips for installation in 2U rack-mount servers
- Intelligent hardware: Downloadable FPGA programming with multiple operating modes. Add new features related to voice and/or data when they become available
- Autosense compatibility with 5 V and 3.3 V PCI busses
- Line decoding: HDB3, AMI, B8ZS
- Framing: CRC-4, Non CRC4, ESF, SF, D4T1/E1. Also compatible with Japan's J1
- A104E and A104DE PCI Express: 1 Lane PCI Express bus
- Maximum operational power for PCI: 3.8 W (0.76 A @ 5 V) For PCI Express: 3.2 W (0.97 A @ 3.3 V)
- Temperature range: 0 – 50 °C
- 32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
- Ring buffer DMA handling for minimum host intervention and guaranteed data integrity on high volume systems
- Supports Robbed Bit Channel Associated Signaling (CAS) and ISDN PRI
- T1/E1 and fractional T1/E1, multiple channel HDLC per line for mixed data/TDM voice applications
- Optimized per channel DMA streams and hardware-level HDLC handling unload the host CPU
- Uses raw bitstream interfaces to support arbitrary non-standard line protocols, such as non-byte aligned monosynch or bisynch
- WANPIPE® routing stack is completely independent of TDM voice application for total system reliability
- WANPIPE® supports certified, field-tested, and reliable Frame Relay, PPP, HDLC, and X.25
Optional DSP Hardware Echo Canceller Daughterboard
- G.168–2002 echo cancellation in hardware
- 1024 taps/128 ms tail per channel on all channel densities
- DTMF decoding and tone recognition
- Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction
- Does not increase the physical size of the card, and no additional slot is required
Operating Systems
- Windows® 2003, Windows® XP, Windows® Server 2008, Windows® Vista, Windows® 7
- Linux (all versions, releases and distributions from 1.0 up)
Warranty: Lifetime warranty on parts and labour.

Production Quality: ISO 9002
- PRI ports4 E1/T1 ports with a single PCI interface optimized for high performance voice and data applications
- Hardware Echo cancelation G.168–2002 echo cancellation in hardware 1024 taps/128 ms tail per channel on all channel densities DTMF decoding and tone recognition Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction Does not increase the physical size of the card, and no additional slot is required
- Slot type1 PCI |32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention
- VoltageDetección automática de 5 V y 3,3 V PCI buses
- OthersHow_to_Reduce_Asterisk_System_Loads.pdf
- Quick start guideINSTALL_windows.pdf
- Datasheeta104.pdf
- Datasheeta104.pdf
- DatasheetSangoma_Digital_Series.pdf
