Manufacturer: SANGOMA
Avanzada 7 code: 0020140050017
Manufacturer SKU: A116-DEPNLKIT
Unidades en la cesta: 0

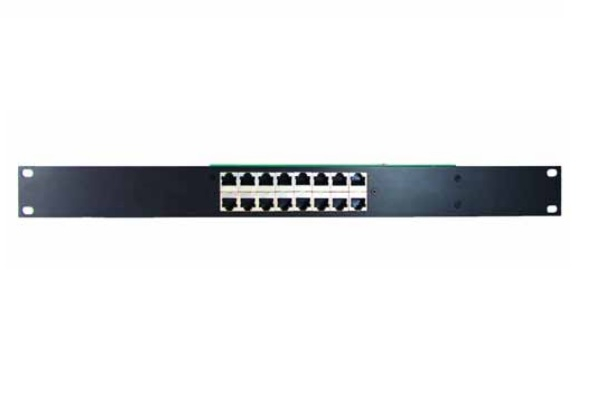

Sangoma A116DE(16E1 PCIe+E.C.+connection panel)
-
The A116 is part of Sangoma’s family of Advanced Flexible Telecommunications hardware product line – using high performance PCI Express interface, providing superior performance in critical systems all over the world. The A116 supports up to 32.8 Mbps of full duplex data throughput or 480 voice calls using 16 T1/E1/J1 spans.
With Sangoma cards, you can take advantage of hardware and software improvements, as soon as they become available. The A116, like all cards in Sangoma’s AFT family, is field-upgradable with our unique unbreakable firmware feature.
Choose the Sangoma A116E and A116DE, equipped with world class DSP hardware to achieve carrier-grade echo cancellation and voice quality enhancement functions for telecommunication systems.
Typical A116 Applications:
- Call Centers
- Value-Added Services
- Large IVR Systems
- Gateways and Soft Switches
-
- PRI ports 8 E1/T1 ports with a single PCI-Express interface optimized for high performance voice and data applications
- Hardware Echo cancelation G.168–2002 echo cancellation in hardware 1024 taps/128 ms tail per channel on all channel densities DTMF decoding and tone recognition Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction Does not increase the physical size of the card, and no additional slot is required
- Slot type 1 PCI Express |32-bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec for minimum host processor intervention | Maximum operational power for PCI Express: 2.5 W (0.76 A @ 3.3 V)
-
- Datasheeta116.pdf
