Avanzada 7 code: 0020140010009
Manufacturer SKU: 1TE121PF
- Producto descatalogado

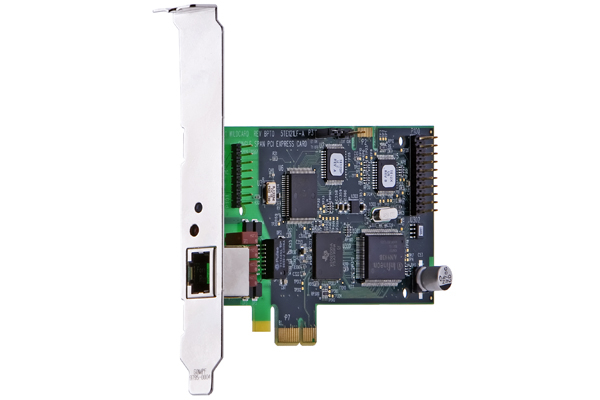

Digium TE121
-
Used in conjunction with Asterisk®, the TE121 can be used to deliver a wide range of PBX and IVR services to the network or handset including Voicemail, Call Conferencing, Three-way Calling, and VoIP Gateways.
The TE121 is a single span, selectable T1 (24-channel), E1 (32-channel), or J1 (24-channel) card. The card utilizes Digium's VoiceBus™ technology. VoiceBus technology allows the TE121 to use an industry standard bus-mastering PCI Express interface, as found in millions of PCs worldwide, to maximize system compatibility and eliminate system conflicts. Improving upon the prior TE120P which does not offer expansion capabilities, the TE121 may be combined with Digium's VPMADT032 echo cancellation module to deliver 128ms of echo cancellation across 30 channels in E1 mode or 24 channels in T1 mode. Bundled with the VPMADT032, the product SKU is TE121B.
The TE121 supports both voice and data modes on its single span. For example, the card can support 12 channels dedicated to voice, routed directly to the Asterisk Open Source PBX, and 12 to data, handled by the underlying Linux operating system, thus eliminating the need for an external router. The TE121 works in any PCI Express compliant slot.
The TE121 supports industry standard telephony and data protocols, including both RBS and Primary Rate ISDN (PRI) protocol families for voice and PPP, Cisco HDLC, and Frame Relay data modes. The board drives both line-side and trunk-side interfaces, including call features.
-
- FXO ports0
- FXS ports0
- PRI ports1
- Puertos BRI0
- software Echo cancelationNo
- Hardware Echo cancelationOpcional
- Slot typePCI-Express
-
- Quick start guideADL_quickstart.pdf
- DatasheetPCI-express-digital-cards-datasheet.pdf
- User manualTE120_series_manual.pdf
- Quick start guideTE120_series_quickstart.pdf
