IP Video Phone Yealink VP 530

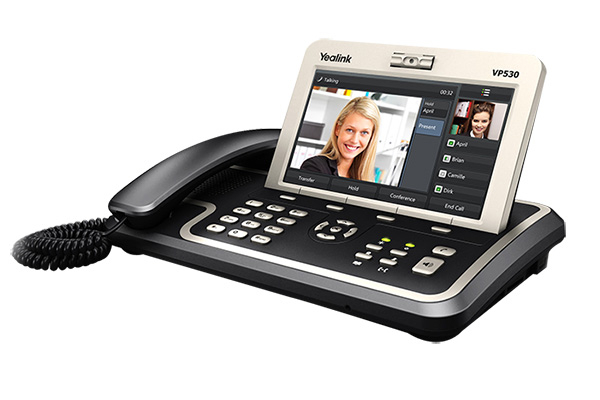

  • Imagen 1: IP Video Phone Yealink VP 530
  • Imagen 1: IP Video Phone Yealink VP 530

Avanzada 7 code: 0010020740001

Manufacturer SKU: VP530

Producto descatalogado

  • IP Video Phone

    VP530


    The Yealink VP530 is a further innovation of our advanced, executive-level IP Video Phone. With integrated audio, video and applications, the VP530 is a very powerful business video phone. Its large display and easy use make it an ideal all-in-one tool for today’s busy business leaders, regardless of where they happen to be. With excellent performance and rich business features, the VP530 offers an all-round, face-to-face network experience that allows users to interact and communicate like never before. Features include:

    * Integrated intelligent features that make it exceptionally easy to operate
    * Maximum productivity for managers and executives
    * Efficient person-to-person contact by video call or video conferencing, leading to lower travel costs and faster decision-making
    * Easy to install and simple to administer, upgrade and maintain
    * A reduced carbon footprint with energy-saving PoE for a greener world
    * Highly customizable and expandable service features



    Features

    • TI DaVinci dual-core chipset, 2M CMOS camera
    • 7” 800x480 digital LCD, Touch screen
    • HD Voice, full-duplex speakerphone
    • 4 VoIP accounts, 3-way video conferencing
    • BLF, Intercom, 18 one-touch soft DSS keys
    • Total directory solution
    • Door phone application



    Specification

    • Video Features
    • Video codec: H.264 and H.263
    • Image codec: JPEG, GIF, PNG, BMP
    • Video capacity: up to D1 (720x480)@30fps
    • Video call format: CIF/QCIF
    • Bandwidth selection: 128kbps~1Mbps
    • Frame rate selection: 10~30fps
    • Adaptive bandwidth adjustment
    • I-frame adjustable
    • Picture-in-Picture (PIP)
    • Full screen for remote side
    • Video control of local side
    • Door phone application


    Audio Features

    • HD voice: HD codec, HD handset, HD speaker
    • Wideband codec: G.722
    • Narrowband codec: G.711(A/μ), G.723.1, G.729AB
    • DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
    • Full-duplex hands-free speakerphone with AEC
    • Voice activity detection
    • Comfort noise generation
    • Adaptive jitter buffers
    • Packet loss concealment


    IP-PBX and BroadSoft Features

    • Busy lamp field (BLF), BLF list
    • Message waiting indicator (MWI)
    • Intercom, Music on hold
    • Call park, Call pickup
    • Anonymous call, Anonymous call rejection
    • DND & forward synchronization
    • Dial Plan, Dial-now


    Phone Features

    • 4 VoIP accounts, Video/Voice call
    • 18 one-touch soft DSS keys, Speed dial
    • Dial/answer call type selection (video or voice)
    • Call forward, Call waiting, Call transfer, Call hold
    • Mute, Redial, Auto answer
    • DND, Caller ID display, Call history
    • Voice mail, Local 3-way audio conference
    • Direct IP call without SIP proxy
    • Phonebook with contact picture,
    • Group manager, Black list
    • XML/LDAP remote phonebook
    • New message and missed call notification
    • Volume control, Ring tone selection
    • Wallpaper
    • Set date time manually or automatically
    • National language selection
    • Icon-driven menu


    Network and Security

    • SIP v1 (RFC2543), v2 (RFC3261)
    • NAT transverse: STUN mode
    • Proxy mode and peer-to-peer SIP link mode
    • IP assignment: static/DHCP/PPPoE
    • HTTP/HTTPS web server
    • Time and date synchronization using SNTP
    • UDP/TCP/DNS-SRV(RFC 3263)
    • QoS: 802.1p/Q tagging (VLAN),Layer 3 ToS, and DSCP
    • SRTP for voice and video
    • Transport Layer Security (TLS)
    • HTTPS certificate manager
    • AES encryption for configuration file
    • Digest authentication using MD5/MD5-sess


    Management

    • Configuration: browser/phone/auto-provision
    • Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
    • Auto-provision with PnP
    • TR069 Protocol optional
    • BroadSoft device management
    • Zero-sp-touch
    • Reset to factory, Reboot
    • Package tracing export, System log


    Physical Features

    • TI DaVinci dual-core chipset, Resistive touch screen
    • 7" digital TFT-LCD with 800x480 pixels resolution
    • Rotatable CMOS sensor camera with 2M pixels
    • 128MB flash and 256MB DDR2 memory
    • 27 keys including 4 soft keys
    • 6 feature keys: Mute/Camera/Phonebook/ Transfer/Redial/Hands-free
    • 2xLEDs for power and status indication
    • 2xRJ45 Ethernet 10/100M ports
    • 1xUSB2.0 port, 1xSD card slot
    • 2.5mm headset port
    • Power adapter (optional):
    • AC 100~240V input and DC 5V/3A output
    • Power over Ethernet (PoE) optional: IEEE 802.3af, Class 0
    • Power consumption: 4~10W
    • Net weight: 1.2Kg
    • Dimension: 286x89x45mm
    • Operating humidity: 10~95%
    • Storage temperature: -10~50°C
    • Lines4
    • BLFYES
    • RJ45 ports2xRJ45 Ethernet 10/100M ports
    • GigabitNO
    • Headset connector2.5mm headset port
    • SIP accounts4
    • PoEYES
    • Power supplyOptional
    • Expansion moduleNO
    • Touch screenYES
    • Color displayYES
    • WifiNO
    • BluetoothNO
    • Display7” 800x480 digital LCD, Touch screen
    • HandsFreeYES
    • Audio CodecG722, G.711(A/?), G.723.1, G.729AB
    • Supported codecsVideo codec: H.264 and H.263
