Código da Avanzada7: 0010030140017
Manufacturer SKU: 80-00001AAA-A
- Producto descatalogado
Antena exterior Mitel 8 canales DECT RFP 37 IP
-

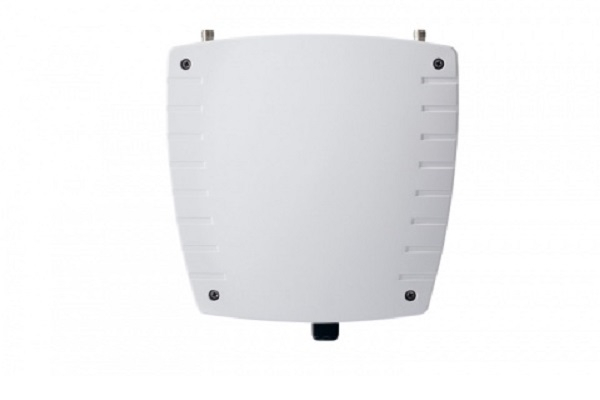

Mitel RFP 34 IP (outdoor)
The outdoor base station RFP 34 IP performs the outdoor operating requirements (class of protection IP 65). If required, radio relay antennas can also be used instead of the dipole antennas. The RFP 34 IP is powered using Power-over-Ethernet.

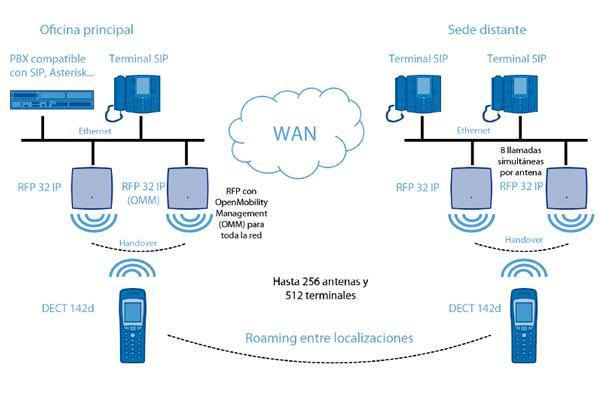

The Radio Fixed Parts RFP (L)32 IP and RFP (L)34 IP are connected directly to the LAN like a VoIP device and use the benefits of established DECT technology for radio transmission. This ensures full compatibility with cordless DECT terminals, which are available as system telephones and standard GAP terminals.
DECT
* 120 DECT channels supported for maximum use of DECT capacity
* 8 simultaneous voice channels per RFP, 4 additional channels for handover
* GAP standard supported
* Connection handover in line with the GAP standard
* DSAA authentication between base and handset
* Support of DECT encryption
* Adicional antenna for RFP 32/34 IP.
* Type of ingress protection: IP 65
* Flame resistance UL94 V0 -
- Datos TécnicosCentral cluster administration with 8 simultaneous voice channels per RFP, 4 additional channels for handover
- EquipamientoExternal dipole or directional antenna on the RFP IP
- Protocolos VoIPSIP VoIP connection using RTP/RTCP protocol.
- Puerto WANEthernet 100 BaseT + PoE (Power over Ethernet standard IEEE 802.3af, class 0)
- Codec de audio G.711 / G.723.1 / G.729AB1 codec depending on required voice quality and available bandwidth
-
- FAQModelos de licenciamiento.pdf
- User manualSIP-DECT_OM_System_Manual_R21A_V1-8_en.pdf
- User manualSIP-DECT_OM_Provisioning_R21A_2011-02_en.pdf
- User manualSIP-DECT_OM_Locating_R21A_2011-02_en.pdf
- User manualSIP-DECT_OM_IMA_R21A_2011-03_en.pdf
- Quick start guideSIP-DECT_OM_Compendium_R21A_2011-03_en.pdf
- Datasheetrfp(L)-32ip-34ip_ds_en_2011-09.pdf
- Datasheetrfp32_34_ds_gb_0807_2.pdf
- FirmwareSIP-DECT_2_1_SP4.zip
