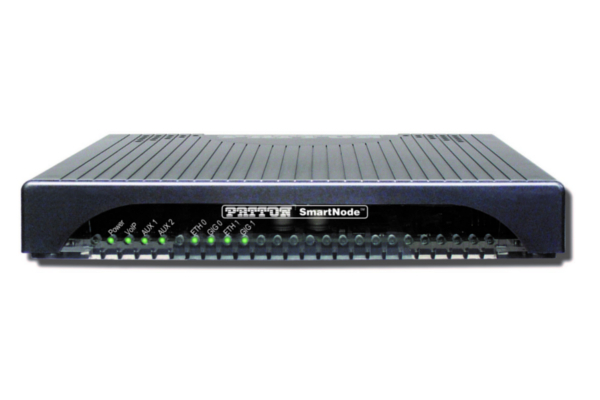

Patton eSBC SN5501 8 SIP Calls transc/non transc

  • Imagen 1: Patton eSBC SN5501 8 SIP Calls transc/non transc
  • Imagen 2: Patton eSBC SN5501 8 SIP Calls transc/non transc
  • Imagen 1: Patton eSBC SN5501 8 SIP Calls transc/non transc
  • Imagen 2: Patton eSBC SN5501 8 SIP Calls transc/non transc

  • Patton SmartNode SBC SN5501 8P / EUI

    With your eSBC SmartNode 5500 you can connect through a router with a SIP trunk link or a hosted PBX service. The SN5500 supports up to 200 SIP to SIP calls (under ideal conditions), 8 which can be transcoding, for remote connectivity, branches and All-IP operator services.

    The SN5500 series acts as a Session Border Controller, access router and QoS CPE, all in one device. You can also carry out the evaluation and monitoring of the network in the client's facilities using the PacketSmart agent to prevent, reduce and solve network and voice quality problems.

    Key features

    • 8 SIP calls transcoding
    • Up to 200 calls from SIP to SIP in ideal conditions
    • 2 x Gigabit Ethernet 10/100/1000Base-T
    • External UI power (100-240)
    • IP routing
    • Advanced switching of local calls. It connects to multiple SIP / IP PBX services. It includes SIP TLS / SRTP
    • Network monitoring and evaluation
    • Automatic provisioning
    • Propietary operating system: uses Trinity's patented software optimizing security
    • Easy administration and provisioning
    • Full VoIP protocol support - SIPv2, SIPv2 soberTLS, T.38, voz HD G.722, RTP security with SRTP, face and modem omission, DMTF relay
    • Interoperability for voice and fax T.38

    Why SmartNode?

    • Patton Quality
    • Made in the USA
    • Unrivalled Customer Support
    • Free Support and Upgrades

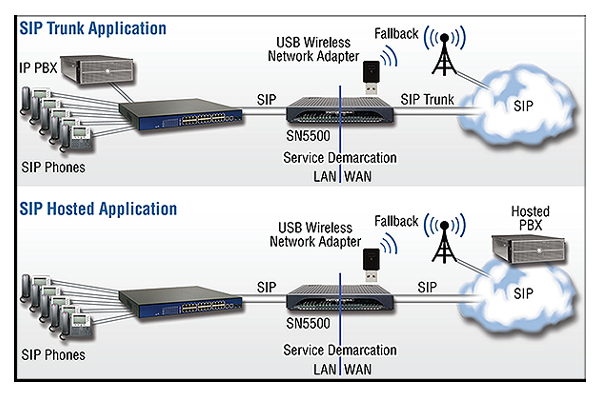

    Valid for this two applications:

    Escenarios Patton SN5501
    • Caracteristicas AdicionalesInteroperability for voice and fax T.38
    • USB1 USB port
    • Caracteristicas AdicionalesIEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion / deletion), TOS, DiffServ Labeling
    • Codec de audioG.722, G.711 m/A-law, G.723.1 (6.4 kbps), G.729, 729.a, 729ab (8 kbps), G.726 (16, 24, 32, 40 kbps), G.168-2004 echo cancelación (128ms - Depend on the model)
    • Numero de puertos RJ452 x RJ45 10/100/1000 Base-T Ethernet ports
    • Caracteristicas Adicionales1 RS-232 Console port
    • Protocolos VoIPUp to 8 transcoded or non-transcoded calls (SIP b2b UA) | 2 x 10/100 / 1000Base-T Ethernet Port
