Fabricante: ALPHATECH
Código da Avanzada7: 0060670560010
Manufacturer SKU: 220202
Unidades en la cesta: 0

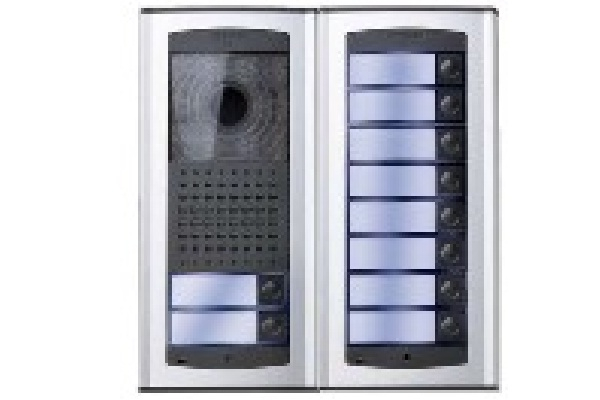

Video Portero SIP Alphatech IPDP Bell 2 botones
-
IP Bell - VoIP SIP video door entry phone station
- talk to callers, look at callers, then open the door
- SIP Protocol, works with most modern IP phone systems
- robust door entry phone station which can be installed both outdoors and indoors
- the front plate in made in anodised extruded alluminium and ABS plastic
- name holders are back lit in original blue colour for easy identification even in poor lighting conditions
- 30mm thin profile
- IP44 rating
- surface mounted therefore extremely easy to install
- options for single button which places a call to one number/group or two buttons which call different numbers/groups
- optional IP camera to view real time video on a computer or e.g. Grandstream GXV3140 or Snom 800 series phone screen. Up to 5 frames per second.
- two internal relays controlled by DTMF tones to control door openers or lights
- Power over Ethernet (PoE)
- IP camera to view real time video on a computer
- camera pernamently operational, not just during calls
- audio/Video PC PopUp SW app for Peer to Peer mode
- integrated codelock feature via pushbuttons
- call forwarding to second phone number , e.g. a cell (mobile) phone
- each pushbutton has got memory for 2 numbers
- Peer to Peer or SIP Proxy (IP PBX) mode
- HTTP management
-
compatible IP phone systems:
- 3CX
- Aastra NeXspan
- Alcatel OmniPCX
- Asterisk
- Avaya
- Cisco CallManager
- Gigaset pro
- IP Cortex
- Karel IPv50
- Mitel
- Nortel
- Panasonic
- Quadro Epygi
- SARK
- Snom ONE
- SWYX
- tested with Snom, Grandstream, Yealink, Polycom IP phones
-
tested with Vippie video softphone application for mobile devices
- iOS (iPhone/iPad), Android compatible
- it is necessary to use correct dtmf method - rfc2833 generated dtmf
-
- CamResolution support: 640x480, 352x288, 320x240, 176x144, 160x120 | Frame rate: 1 to 7 pfs on H.263, 1 to 5 fps on H.264
- Numbers of buttonswith two pushbuttons
- AntivandalNO aunque reforzado en aluminio. Indice de protección IP44.
- SIPSession Initiation Protocol (SIP RFC3261)
- Relay number2 relay control
-
- Documentacion DesarrolloUDVGuard_Android_0_5.pdf
- OthersGrandstream GXV3140 - IP DoorPhone settings.pdf
- DatasheetDoor_Phone_IP_Bell_datasheet.pdf
- User manualIP_Bell_manual_V10_ENG.pdf
- Firmwareipudvpopup(1.39).zip
- User manuale_ipdp-popup-guide.pdf
- Firmwareapt-v2.30.update
- Firmwareipdp-popup-panel.zip
