Fabricante: DIGIUM
Código da Avanzada7: 0020140010011
Manufacturer SKU: 1TE820F
Unidades en la cesta: 0

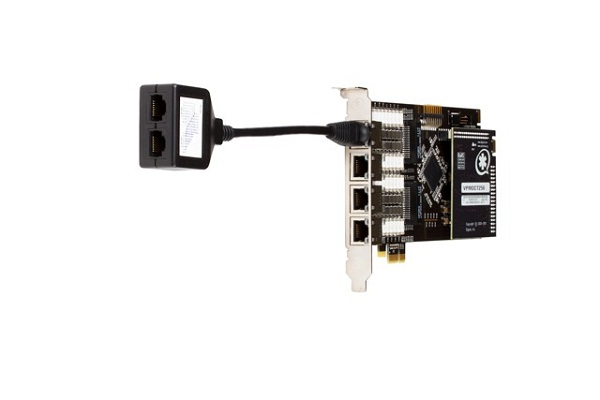

Tarjeta Digium TE820F (8PRI) PCI express
-
Digium TE820F (8PRI) PCI express
Digium octal span digital cards are high-performance, cost effective digital telephony interface devices with the power to seamlessly interconnects traditional telephony systems with Voice over IP technologies.
- 8 T1 / E1 Spans
- Up to 240 concurrent calls per card
- Optional hardware echo cancellation module
- PCI Express form factor
Digium’s TE820 Octal-Span digital card is built exclusively for high-density Asterisk® applications that require high-performance, cost effective digital connectivity. The TE820 includes eight independently software-selectable digital telephony interfaces, supporting up to 192 channels (in T1/J1 mode) or 240 channels (in E1 mode) — the highest single-card port density available for use with Asterisk. The TE820 seamlessly interconnects traditional telephony systems with Voice over IP (VoIP) technologies at the lowest per-port price on the market today.
The TE820 card supports industry standard telephony protocols, including multiple variants of Primary Rate ISDN. Each span can be configured as either CPE or network for optimal flexibility. The optional VPMOCT256 hardware echo cancellation module, based on the industry-leading Octasic chipset, offloads the task of echo cancellation from the CPU, increasing overall system performance and call quality.
The TE820 card has been designed to be fully compatible with existing software applications and is fully integrated with Digium’s Asterisk software. The open source drivers for Digium cards support an application programming interface (API) for custom application development. The combination of Digium hardware and Asterisk software provides a cost effective platform for building numerous communications solutions, from PBX system and VoIP gateways to call centers and complete unified communications suites. Digium solutions are paving the way for a new generation of worldwide communications.
-
- Puertos FXO0
- Puertos FXS0
- Puertos PRI8
- Cancelador de eco Hardwareopcional VPMOCT256
- Tipo de slotPCI-Express
- Módulos CompatiblesVPMOCT256
-
- Quick start guideADL_quickstart.pdf
- User manualte800series-user-manual.pdf
- Datasheetechocan-datasheet.pdf
- Datasheetanalog-digital-hardware-datasheet-web.pdf
- DatasheetTE820-octal-span-card-datasheet.pdf
