Fabricante: GRANDSTREAM
Código da Avanzada7: 0010010060026
Manufacturer SKU: GXP1610
Unidades en la cesta: 0

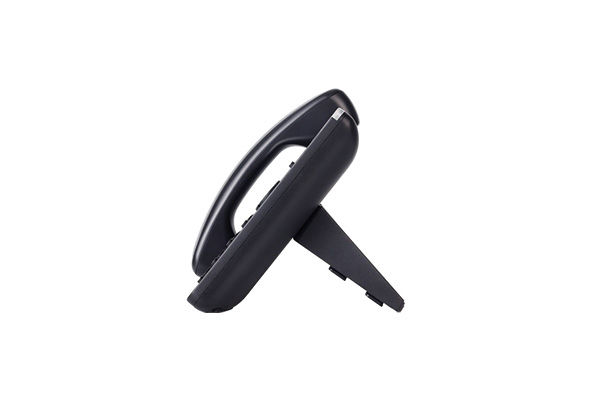

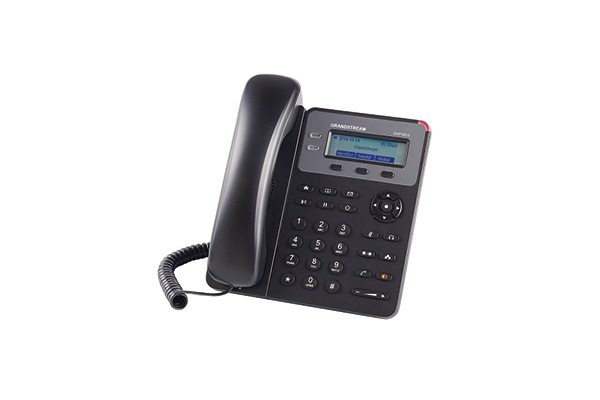

Terminal IP Grandstream GXP-1610
-
Grandstream GXP-1405 (PoE)
GXP1400/1405 is a next generation small-to-medium business IP phone that features 2 lines with 1 SIP account, a 128x40 graphical LCD, 3 XML programmable context-sensitive soft keys, dual network ports with integrated PoE (GXP1405 only), and 3-way conference. The GXP1400/1405 delivers superior HD audio quality, rich and leading edge telephony features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms. It is a perfect choice for small-to-medium businesses looking for a high quality, feature rich IP phone with affordable cost.
- 128x40 pixel graphical LCD display
- 2 line keys with dual-color LED (1 SIP account and up to 2 call appearances), 3 XML programmable context-sensitive soft keys, 3-way conference
- HD wideband handset, hands-free speakerphone with advanced acoustic echo cancellation
- Phonebook with up to 500 contacts and call history with up to 200 records
- Automated personal information service (e.g., local weather), personalized music ring tone/ring back tone
- Dual switched auto-sensing 10/100Mbps network ports, integrated PoE (GXP1405 only)
- Automated provisioning using TR-069 or AES encrypted XML configuration file via TFTP/HTTP/HTTPS, SRTP and TLS for advanced security protection, 802.1x for media access control
SIP Compliant and Protocols SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, TR-069, 802.1x. Networking Interfaces Dual switched 10/100Mbps ports, integrated PoE (GXP1405 only) Graphical Display 128x40 graphical LCD display Feature Keys 2 line keys with dual-color LED and 1 SIP account, 3 XML programmable context sensitive soft keys, 5 navigation/menu/volume keys, 8 dedicated function keys for HOLD, TRANSFER, CONFERENCE, VOLUME, HEADSET, MUTE, SPEAKERPHONE, SEND/REDIAL Voice Codecs Support for G.723.1, G.729A/B, G.711µ/a, G.726-32, G.722 (wide-band), iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO) Telephony Features Hold, transfer, forward, 3-way conference, call park, pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy and fail-over HD Audio Yes, HD handset with support for wideband audio Headset Jack RJ9 headset jack Base Stand Yes, 2 angle positions available Wall Mountable Yes QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS Security User and administrator level passwords, MD5 and MD5-sess based authentication, AES encrypted configuration file, SRTP, TLS, 802.1x media access control Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and etc Upgrade/Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file Power & Green Energy Efficiency Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: +5VDC, 800mA Integrated Power-over-Ethernet (802.3af,GXP1405 only) Max power consumption 2.5W (power adapter) or 3W (PoE) Physical Unit dimension: 186mm (W) x 210mm (L) x 81mm (D) Unit weight: 0.7KG Package weight: 1.1KG (GXP1400), 1.0KG (GXP1405) Operating Temperature & Humidity 32-104oF/0-40oC, 10-90% (non-condensing) Package Content GXP1400/1405 phone, handset with cord, base stand, universal power supply (GXP1400 only), network cable, quick start guide Compliance FCC Part 15 (CFR 47) Class B EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1 AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS UL 60950 (power adapter) User Manuals
Quick Installation Guides
GXP1400 Quick Installation Guide
White Papers
XML Based Downloadable Phonebook
XML Survey Application on GXP2020
Interoperability
Configuring GXP Series with Asterisk
Configuring GXP Series with 3COM
Configuring GXP Series on Quadro LAN
Configuring GXP Series with Broadworks
Broadsoft Provisioning Templates
Configuring GXP Series with 3CX
Datasheets
Firmware
Tools
Grandstream IP Phone Custom Ringtones Generation Tool
Tools, Utilities, and Configuration Templates
Grandstream Device IP Discovery Tool
Resources
-
- Numero de lineas1 line keys (up to 2 call appearances)
- Numero de puertos RJ45Dual switched auto-sensing 10/100Mbps
- Conector para cascosRJ11(Headset)
- Numero de cuentas SIP1 SIP Account
- Fuente de alimentacionNO tiene
- Display132x48 pixel graphical LCD
- HandFree Full-duplex hands-free speakerphone with advanced acoustic echo cancellation, Electronic Hook Switch (EHS) with Plantronics headsets
-
- Guia de AdministracionGXP16xx_Administration_Guide.pdf
- Datasheetgxp1610_brochure_english.pdf
- User manualGXP16xx User_Guide.pdf
- Datasheetgxp1610_datasheet_spanish.pdf
- User manualGXP16XX_Quick User Guide_Spanish.pdf
