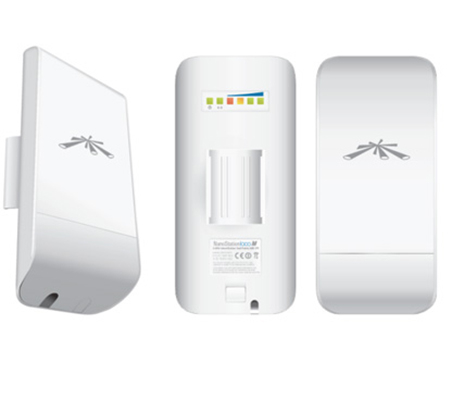

Ubiquiti Locom5 Airmax 5 GHz CPE 13 dGi 200 mW

Descrição
Dados técnicos
Descargas

Ubiquiti NanoStationM5: 5 GHz 2x2 MIMO AirMax TDMA Station

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mpbs real outdoor throughput and up to 15km+ range.
Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

Next Gen Antenna Design:
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.

Dual Ethernet Connectivity:
Secondary ethernet port with software enabled POE output for seamless IP Video integration.

Intelligent POE design:
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

AirOS V:
Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

Features:

High Performance MIMO 2x2 TDMA Architecture
Extended Outdoor Range
Ubiquiti AirOS software
External status LEDs
External reset button
Pole, Wall or Window mount options

Specification:

MIPS 24KC, 400MHz
32MB SDRAM, 8MB Flash
2 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface
FCC Part 15.247, IC RS210, CE
Integrated 2x2 MIMO Antenna:
- Frequency Range: 4.9-5.9 GHz
- Gain: 14.6-16.1 dBi
- Polarization: Dual Linear
- Cross-Polarization Isolation: 22 dB minimum
- H-pol Beamwidth: 43°
- V-pol Beamwidth: 41°
- Elevation Beamwidth: 15°
Maximum Power Consumption: 8 Watts
Dimensions: 26.4 cm x 8 cm x 3 cm
Weight: 0.4 kg
Enclosure: Outdoor UV Stabilized Plastic
Pole Mounting Kit included
Power Supply: 15V, 0.8A surge portection integrated POE adapter included
Power Method: Passive PoE (pairs 4,5+; 7.8 return)
Operating Temp: -30°C to +80°C
Shock and Vibration: ETSI300-019-1.4
RoHS Compliant: Yes

Operating Frecuency 5470MHz-5825MHz

DataRate	Avg. TX	Tolerance	DataRate	Sensitivity	Tolerance
1-24Mbps	23 dBm	+/-2dB	24Mbps	-83 dBm	+/-2dB
36Mbps	21 dBm	+/-2dB	36Mbps	-80 dBm	+/-2dB
48Mbps	19 dBm	+/-2dB	48Mbps	-77 dBm	+/-2dB
54Mbps	18 dBm	+/-2dB	54Mbps	-75 dBm	+/-2dB
MCS0	23 dBm	+/-2dB	MCS0	-96 dBm	+/-2dB
MCS1	23 dBm	+/-2dB	MCS1	-95 dBm	+/-2dB
MCS2	23 dBm	+/-2dB	MCS2	-92 dBm	+/-2dB
MCS3	23 dBm	+/-2dB	MCS3	-90 dBm	+/-2dB
MCS4	22 dBm	+/-2dB	MCS4	-86 dBm	+/-2dB
MCS5	20 dBm	+/-2dB	MCS5	-83 dBm	+/-2dB
MCS6	18 dBm	+/-2dB	MCS6	-77 dBm	+/-2dB
MCS7	17 dBm	+/-2dB	MCS7	-74 dBm	+/-2dB
MCS8	23 dBm	+/-2dB	MCS8	-95 dBm	+/-2dB
MCS9	23 dBm	+/-2dB	MCS9	-93 dBm	+/-2dB
MCS10	23 dBm	+/-2dB	MCS10	-90 dBm	+/-2dB
MCS11	23 dBm	+/-2dB	MCS11	-87 dBm	+/-2dB
MCS12	22 dBm	+/-2dB	MCS12	-84 dBm	+/-2dB
MCS13	20 dBm	+/-2dB	MCS13	-79 dBm	+/-2dB
MCS14	18 dBm	+/-2dB	MCS14	-78 dBm	+/-2dB
MCS15	17 dBm	+/-2dB	MCS15	-75 dBm	+/-2dB

- Datasheetnsm_ds_web.pdf

Ubiquiti Locom5 Airmax 5 GHz CPE 13 dGi 200 mW

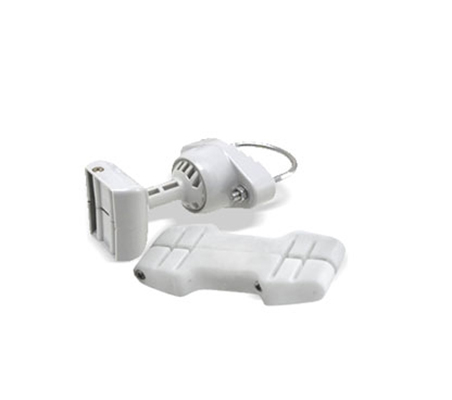

Ubiquiti universal arm bracket for Nanostation
