Avanzada 7 code: 0030320040003
Manufacturer SKU: BF6400box
- Producto descatalogado

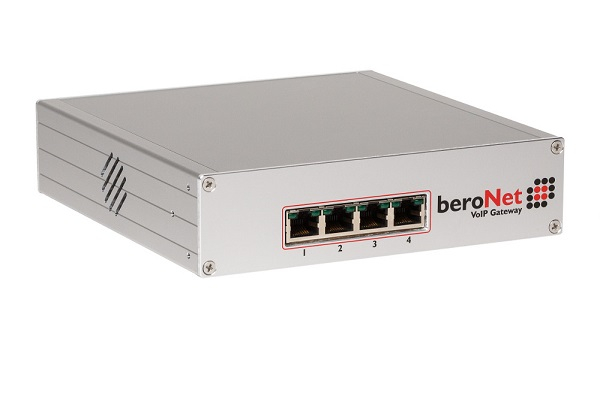

Beronet bero*fix box BNBF6400box (32-128 ch)
-
The berofix box is a powerful and flexible hardware solution to connect ISDN (BRI, PRI) and GSM lines to any SIP based VoIP system. The berofix box is the external aternative to the cards. Due to the modular concept you can mix PRI, BRI and GSM ports on one card with full below described features which makes the berofix cards very unique. The berofix Boxes supports the following hardware DSP based Voice-Processing features:
Features:
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Codec translation: G.723.1 and Annex A, G.729a, G.726, G.711u/a
- DTMF detection and generation
- T.38 fax relay (V.27,V.29 and V.17)
- SIP over TCP
- SRTP and TLS (available Q4 2010)
- DSS1, EuroISDN conform
- Q.SIG Basic-Features set
- PCM Bus interconnection between berofix cards to enable hardware bridging for transparent voice,data and Fax transmission via optional PCM-Bus cable. (available Q4 2010)
p { margin-bottom: 0.21cm; } The berofix Boxes are available in 3 different channel densities: the berofix 400 (4-16 Channels), berofix 1600 (16-64 Channels) and berofix 6400 (64-128 Channels). See table below to check max. Channel densities depending of the Media Functions you are using. In "berofix Channel Option" below select your baseboard which fits to your demand.
-
- FXO portsNO
- FXS portsNO
- PRI portsOpcional con Módulos de 1 o 2 E1
- Puertos BRIOpcional con Módulo de 4 BRI
- Hardware Echo cancelationSI
- Compatible modulesBF4S0, BF1E1, BF2E1
-
- DatasheetDS_berofix.pdf
- User manualberofix_manual.pdf
- Othersbfdetect.tar.gz
- Quick start guideDatasheet_Assembly.pdf
- Firmwareappfs-2.2-sp1.tar.gz
- Firmwareberofix-fpga-8.tar.gz
- Firmwareappfs-1.13.tar.gz
- Firmwarebfdetect.tar.gz
- Firmwarebfdetect_win_x86.zip
