Avanzada 7 code: 0030330050001
Manufacturer SKU: VS0156
- Producto descatalogado

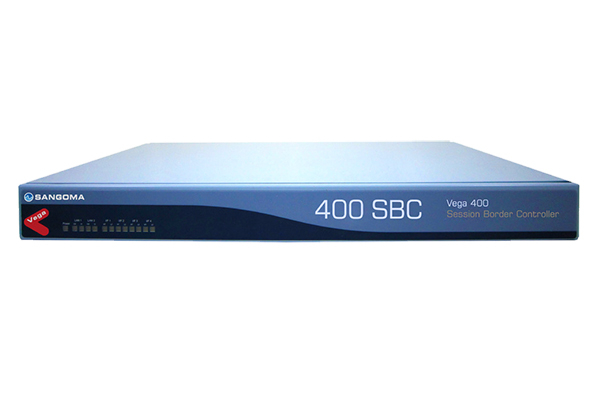

Vega 400 SBC 12 channels
-
The Vega 400 SBC allows service providers and enterprises to deploy SIP trunking and other SIP services, safe in the knowledge that there will be no interoperability issues. Sangoma’s knowledge in connecting to different SIP networks is invaluable in allowing any two networks to talk seamlessly.
Features
- 12 VoIP Sessions
- Transcoding G711,G729,G723
- SIP UDP,TCP,TLS/SRTP
- SIP Normalization (Header Manipulation)
- Multiple SIP profile support
- Extensive Dialplan
- Voice, FAX and Modem Support
- Flexible Call Routing for Fallback and Least Cost Routing
- Interoperability with a Wide Range of Legacy and IP Equipment
- Local Survivability *Exclusive to Vega*
Product Overview
- Solve firewall and NAT issues
- Normalize and fix SIP messaging
- SIP Registration with SIP trunking provider
- Network Topology Hiding
- Secure SIP and Voice (TLS, SRTP)
- Codec Conversion (Transcoding)
Use Cases

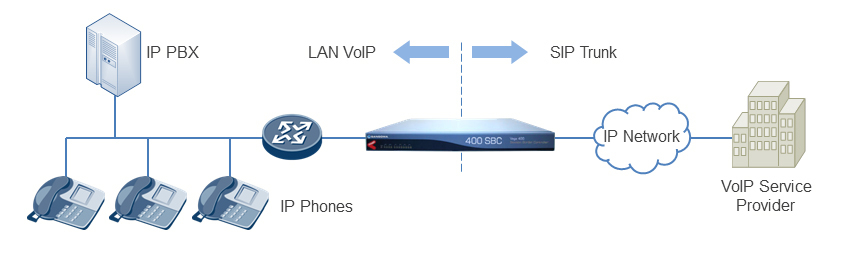

SBC for SIP Trunks
- Known demarcation point
- Reduces interop issues with core
- Reduces resource required for interop
- Transcoding if required

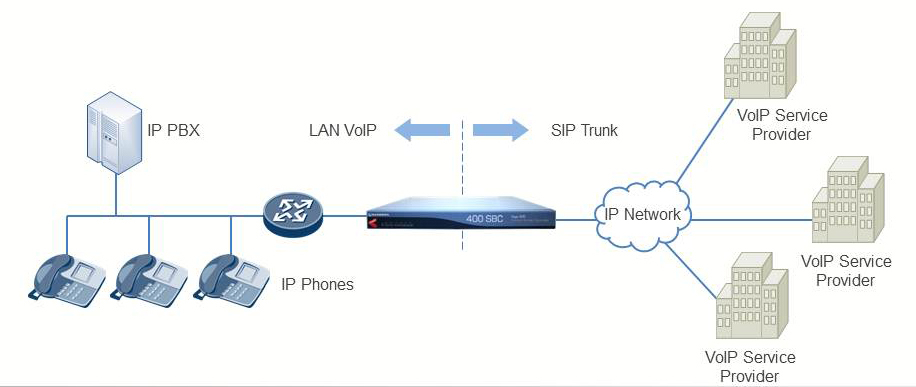

Multi ITSP Support
- All advantages of SBC for SIP trunks
- Least Cost Routing
- Resilience

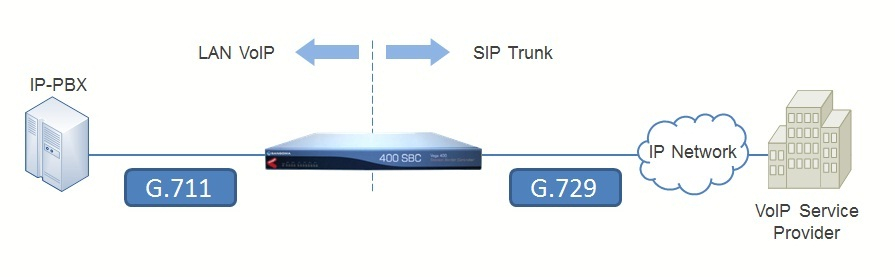

Transcoding
-
Codec conversion
- High bandwidth on LAN, low bandwidth WAN
- Transrating
- Improve voice quality by using a packet loss resilient codec over WAN

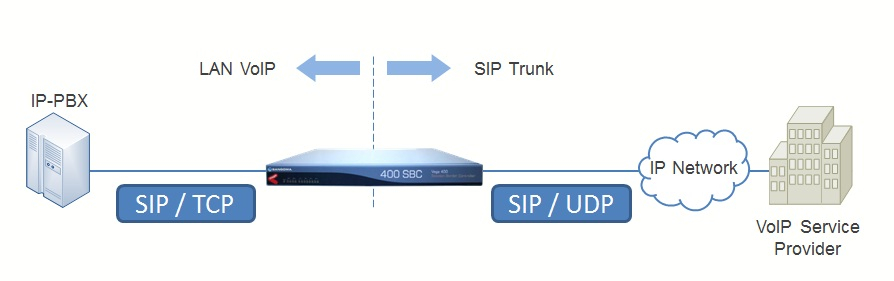

SIP Signal Converstion
- Convert SIP over TCP to SIP over UDP
- Convert SIP over UDP to SIP over TLS
-
Some devices require SIP / TCP
- Microsoft Lync

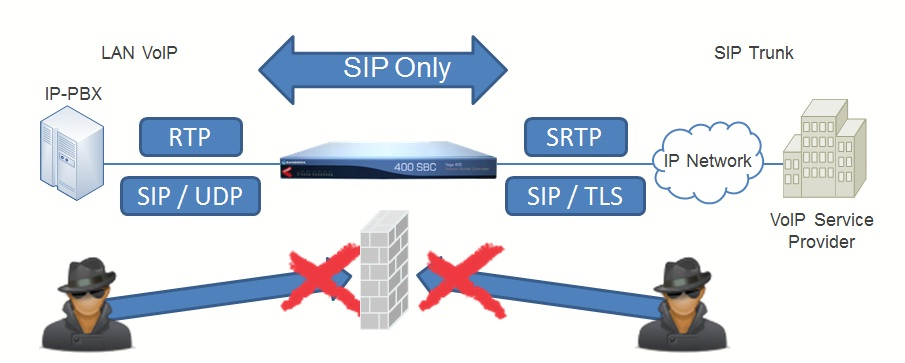

Securing SIP
- Secure SIP signalling and media
- Prevents data intrusion to LAN
- Only allows known SIP endpoints to call
-
- VoIP protocolsSIP UDP,TCP,TLS/SRTP
- FAX codecFAX Support – up to G3 FAX, using T.38
- LAN ports2 x ethernet ports
- Audio CodecTranscoding G711,G729,G723
-
- Datasheetvega400_SBC_datasheet.pdf
