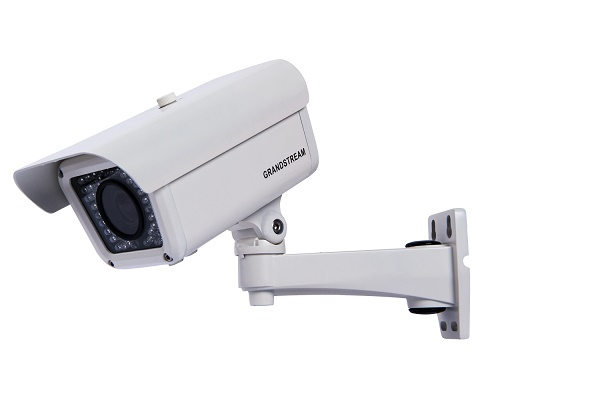

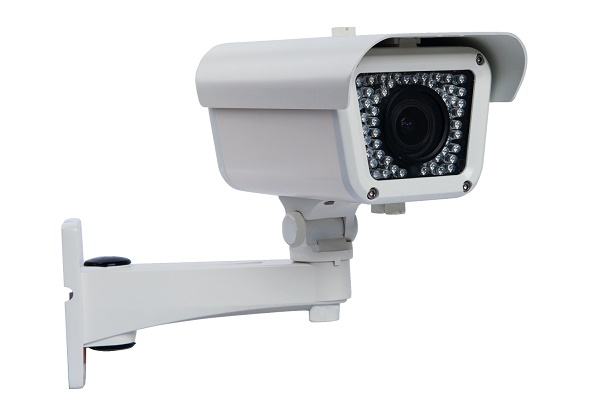

GXV3674_HD Outdoor Day/night HP IP camera

The GXV3674 series are powerful weatherproof Infrared (IR) IP cameras offering an adjustable vari-focal High-Definition lens making them ideal for any outdoor/indoor setting where weather and light conditions constantly change. Each camera’s variable-focal lens allows the user to adjust the lens to best fit their monitoring needs, which allows the GXV3674 to monitor nearby areas, such as a building entrance, and distant focuses, such as a parking lot.

Its’ advanced Image Sensor Processor (ISP) is powered with a state of the art auto-exposure/auto-white balance algorithm which allows for exceptional performance in all lighting conditions, including low light settings. The GXV3674 series can be managed with GSURF Pro (Grandstream’s FREE Video Management Software that allows simultaneous control of up to 36 cameras) along with other ONVIF complaint video management systems.

It features industry-leading SIP/VoIP for 2-way audio (using the camera’s Audio_In port) and video streaming to both video and mobile (smart) phones.
The GXV3674 contains integrated PoE, IR-CUT for day and night mode, advanced security protection and flexible HTTP API for easy integration with other monitoring systems.
- High quality 1.2 Megapixel CMOS sensor and HD lens
- Advanced multi-streaming rate real-time H.264, Motion JPEG at 720p and 1080p resolutions at full frame rate
- Pre/post event recording buffer
- Support Motion Detection and Notification on PC Client
- Support both variable bit rate and variable frame rate
- IP66 compliant weather-proof metal case
- Embedded video analytics and SIP/VoIP support
- Integrated Power-over-Ethernet (802.3af)
- Full ONVIF conformance with extensions in the near future
- Infrared LED covering up to 25m
- Minimum Illumination (0.05Lux)
- Puertos PerifericosNetwork: RJ45, 10M/100M Auto-Sensing 3.5mm Line-In, 3.5mm Line-Out Power Input
- Additional featuresIR Cut Filter=Yes | Day & Night Mode | Infrared LED covering up to 25m | Minimum Illumination 0.05Lux. (0 Lux with IR)
- Supported codecsVideo Compression H.264, MJPEG |SIP/VoIP Support
- Image SensorGXV3672_FHD: 1/3 progressive scan CMOS, 1.2 Megapixel CMOS, 1280H x 960V
- Lens TypeVari-focal HD lens (2.8mm-12mm) with DC-IRIS and the capability to zoom or focus without opening the case
- LAN portsNetwork: RJ45, 10M/100M auto-sensing
- PoEPower over Ethernet (PoE) IEEE 802.3af class 0
- Additional featuresCasing IP66 compliant weather-proof metal case
- Datasheetgxv3674_hd_brochure_spanish.pdf
- Quick start guidegxv3674_quickstartguide.pdf
- User manualgxv3674_usermanual_english.pdf
- Datasheetgxv_3674_hd_datasheet.pdf
