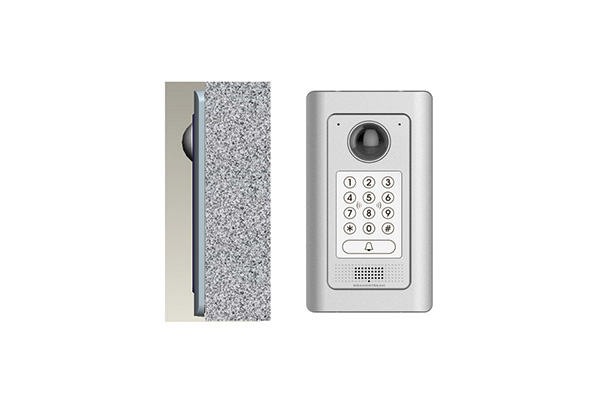

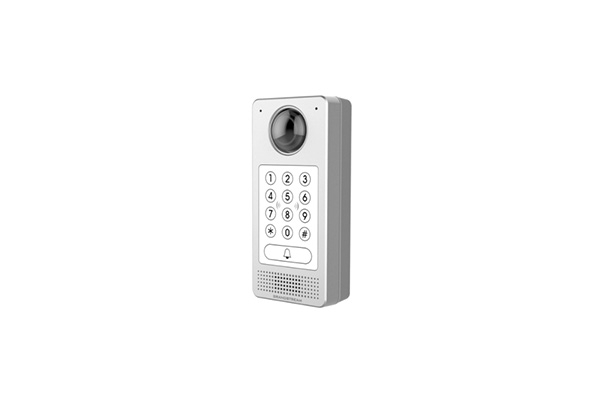

Grandstream video doorphone GDS3710
-
Grandstream GDS3710 IP Video Door Phone
The Grandstream GDS3710 video door phone is an IP video gateway system that can also be used as a high definition IP surveillance camera and to provide access control to security installations and monitoring for building of all sizes.
This video entryphone incorporates an intercom and offers a viewing angle of 180º and includes an RFID reader to enter keyless with total security. It also includes a microphone and speaker to support the functionality of the intercom and also has an incoming and outgoing alarm to integrate with existing security devices.
The GDS3710 also integrates a complete GDS management software that allows the reading of RFID cards and loads the information of said card into the sofware.
Features
- Powerful video resolutions up to 1080p
- Built-in RFID chip reader for keyless entry (2 RFID cards included)
- SIP/VoIP supports allows for streaming of video feeds to multiple smartphones, SIP endpoints & software simultaneously
- Built-in hemispheric camera allows for 180 degree wall-to-wall coverage
- Max Video Resolution 1920x1080
- Supports motion detection
- PoE integrated, IEEE 802.3af Class 3, o 12VDC/1A (Power Supply not included, it is recommended to feed by PoE)
- Microphone and speaker that complement the functionalities of your intercom
- RJ45 10/100 auto-sensing
-
- Cam1/2.7”, 2 Megapixel, 1920H x 1080V
- Numbers of buttons12-key touchpad plus a capacitive doorbell button, each with individual LED illumination
- AntivandalWatherproof and vandal resistant
- SIPSIP video streaming to NVRs, video intercom stations, IP Phones or smart phones simultaneously
- PoEIntegrated PoE
-
- DatasheetGrandstream GDS3710 doorphone EN.pdf
- DatasheetGrandstream GDS3710 videoportero ES.pdf
- Quick start guideGDS3710_Quick_Installation_Guide.pdf
- User manualGDS3710_UserManual.pdf
- OthersConnecting_the_GDS3710_with_GXV32XX_Configuration_Guide.pdf
- User manualGDSManager_User_Guide.pdf
- OthersGDS3710_Input_Output_Connection_Guide.pdf
- FirmwareGDSManager(V1.0.0.75).zip
- OthersGDS3710_Wiring_Diagrams.pdf
